1200 Series
Coax Combo D-Sub - Vertical PCB Type
| Material: Shell: Steel w/ Tin Plated (optional Zinc plating) Signal Contacts: Berylium Copper Coaxial Contacts: Brass Signal Contact Plating: 5u" Gold Coaxial Contact Plating: 15u" Gold Contact Underplating: 100u" min. Nickel Insulation: PBT & 30% glass fiber reinforced thermo plastic : UL94V-O UL File# E107536, material D202G30 Electrical: |
|
Mechanical Specification and

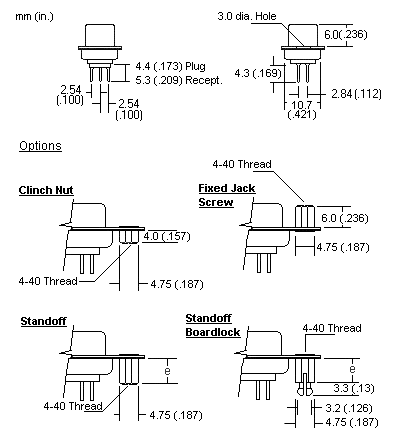

Mounting Option:
|
|
Ordering Part Numbers
| Effective
Apr. 15, 2001 part numbers for this series
have changed. The part numbers below are the current P/N.
Click Here to see a cross reference of the new P/N to the old P/N. For assistance E-Mail us at sales@hochien-connectors.com |
| Shell Size |
Contact Arrangements (Front view of Plug/ Rear view of Recept) |
Plug \ Recept |
Part Number | Dimensions mm | ||||
| 50 ohm | 75 ohm | A | B | C | D | |||
| E |
2W2 |
Plug | 1250-22T | 1270-22T | 30.81 | 16.92 | 24.88 | 8.36 |
| Recept | 1251-22T | 1271-22T | 16.33 | 7.87 | ||||
5W1 |
Plug | 1250-51T | 1270-51T | 16.92 | 8.36 | |||
| Recept | 1251-51T | 1271-51T | 16.33 | 7.87 | ||||
| A |
3W3 |
Plug | 1250-33T | 1270-33T | 39.14 | 25.25 | 33.32 | 8.36 |
| Recept | 1251-33T | 1271-33T | 24.66 | 7.87 | ||||
3V3 |
Plug |
1250-23T |
1270-23T |
25.25 |
8.36 |
|||
| Recept |
1251-23T |
1271-23T |
24.66 |
7.87 |
||||
7W2 |
Plug | 1250-72T | 1270-72T | 25.25 | 8.36 | |||
| Recept | 1251-72T | 1271-72T | 24.66 | 7.87 | ||||
11W1 |
Plug | 1250-11T | 1270-11T | 25.25 | 8.36 | |||
| Recept | 1251-11T | 1271-11T | 24.66 | 7.87 | ||||
| B |
5W5 |
Plug | 1250-55T | 1270-55T | 53.04 | 38.96 | 47.04 | 8.36 |
| Recept | 1251-55T | 1271-55T | 38.38 | 7.87 | ||||
13W3 |
Plug | 1250-13T | 1270-13T | 38.96 | 8.36 | |||
| Recept | 1251-13T | 1271-13T | 38.38 | 7.87 | ||||
17W2 |
Plug | 1250-12T | 1270-12T | 38.96 | 8.36 | |||
| Recept | 1251-12T | 1271-12T | 38.38 | 7.87 | ||||
21W1 |
Plug | 1250-21T | 1270-21T | 38.96 | 8.36 | |||
| Recept | 1251-21T | 1271-21T | 38.38 | 7.87 | ||||
| C |
8W8 |
Plug | 1250-88T | 1270-88T | 69.32 | 55.42 | 63.50 | 8.36 |
| Recept | 1251-88T | 1271-88T | 54.84 | 7.87 | ||||
21W4 |
Plug | 1250-24T | 1270-24T | 55.42 | 8.36 | |||
| Recept | 1251-24T | 1271-24T | 54.84 | 7.87 | ||||
| D |
36W4 |
Plug | 1250-34T | 1270-34T | 66.93 | 52.81 | 61.11 | 11.07 |
| Recept | 1251-34T | 1271-34T | 52.43 | 10.74 | ||||
| * Part Numbers includes Housing, and Preloaded Signal Contacts
and Coaxial Contacts (Preloaded). * Housing with Preloaded Signal Contacts and Coaxial Contacts may be ordered seperately. Contact Ho Chien to Order. * To order Coaxial Contacts only sperately, see table below for Part Numbers. * Economic stamp pin type on signal contacts available. * Zinc shell, Insulation color and gold on contact options are available. Contact Ho Chien for more info. |
||||||||

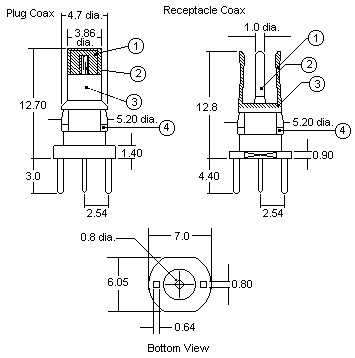

Coaxial Contacts - Vertical PCB Type
|
|
||||||||||||||||||||||||||||||||
|
|
|
|
