PLUG IN TYPE TERMINAL BLOCK - ETB 85,87 SERIES
PITCH=3.5mm (0.137inch), E133988(R)

• Special wire protector design to ensure reliable wire clamping
• Be capable of clamping a wide range of wire diameters
• The male connector of plug using a twin leaf phosphor bronze contact mates with the female socket
• The female socket is mounted and soldered to the P.C.B.
• Good for insertion & withdrawal.
• UL 94V-0 grade fire retardant engineering plastic used for the housing.

Pitch: 3.5mm(0.137inch) Wire range: 16 AWG to 28 AWG Rated: 6 Amp, 300 VAC Housing material: Polyamide 66 (UL 94V-0) resin Terminals: Tin plated over Brass Screws: Zinc plated over Steel Wire cage: Nickel Plated over Zinc Alloy Wire protector: Tin plated over Brass Dielectric strength: 2000 VAC (Min.) Insulation resistance: 500 M , 500 VDC

PART NUMBERING SYSTEM

  ETB 85 03 0 G 0 00 Z
   |   |  | | | |  | |
   |   |  | | | |  | +--- Z:RoHS Compliant
   |   |  | | | |  +--- Special number
   |   |  | | | +--- Screw type
   |   |  | | |      0:"+" screw (for ETB85)
   |   |  | | |      1:"-" screw (for ETB85)
   |   |  | | |      0:No screw (for ETB87)
   |   |  | | +--- Housing color:
   |   |  | |      B:Blue, G:Green, K:Black
   |   |  | +--- Terminal type:
   |   |  |      0:Body type (for ETB85)
   |   |  |      1:Straight pin type (for ETB87)
   |   |  |      2:Right angle type (for ETB87)
   |   |  +--- Number of pins
   |   +--- Series: Dimensions and rated
   |        85:Male Connector of plug (Pitch=3.5mm)
   |        87:Female socket (Pitch=3.5mm)
   +--- Model

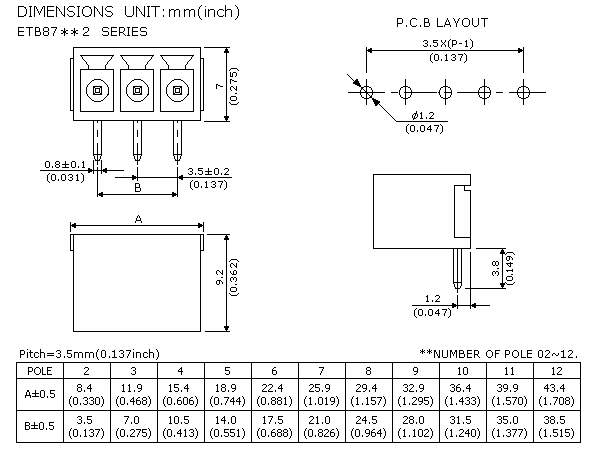

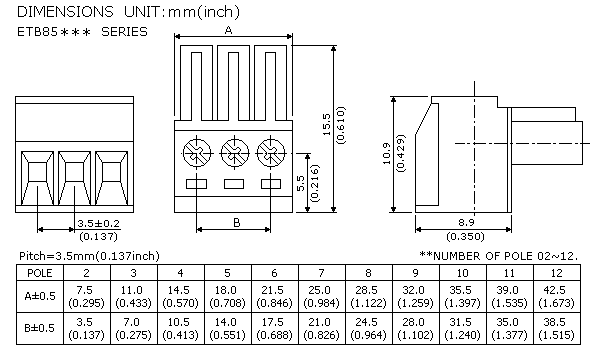

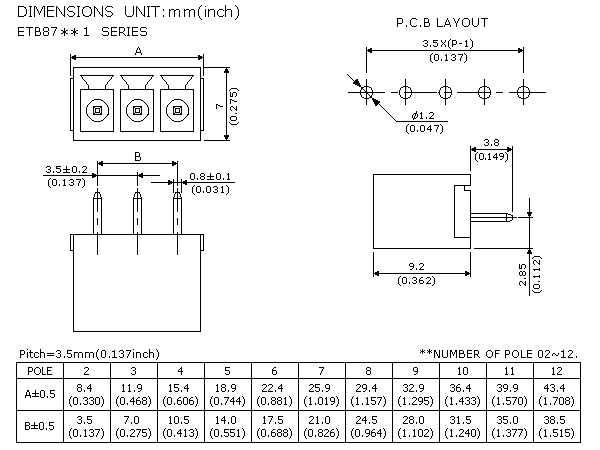

DRAWING
