1800 Series
High Power Combo D-Sub - Right Angle PCB Type
14.84 Footprint
Update: 5/8/07'
| Material: Shell: Steel w/ Tin Plated (optional Zinc plating) Signal Contacts: Berylium Copper High Power Contacts: Brass Signal Contact Plating: 0.000005" Gold High PowerContact Plating: 0.000015" Gold Contact Underplating: 0.000100" min. Nickel Insulation: PBT & 30% glass fiber reinforced thermo plastic : UL94V-O UL File# E107536, material D202G30 Electrical: |

|

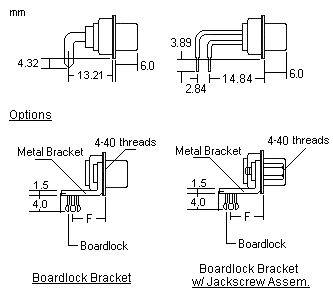

Mechanical Specification and Mounting
Option:
|
|
|||||||||||||||
Ordering Part Numbers
| Shell Size |
Contact Arrangements (Front view of Plug/ Rear view of Recept) |
Plug \ Recept |
Part Number | Dimensions mm | |||||
| 40 Amp | 20 Amp | 10 Amp | A | B | C | D | |||
| E |
2W2 |
Plug | See 1700 Series | 30.81 | 16.92 | 24.88 | 8.36 | ||
| Recept | 16.33 | 7.87 | |||||||
5W1 |
Plug | 1840-51T | 1820-51T | 1810-51T | 16.92 | 8.36 | |||
| Recept | 1841-51T | 1821-51T | 1811-51T | 16.33 | 7.87 | ||||
| A |
3W3 |
Plug | See 1700 Series | 39.14 | 25.25 | 33.32 | 8.36 | ||
| Recept | 24.66 | 7.87 | |||||||
3V3 |
Plug |
1840-22T |
1820-23T |
1810-23T |
25.25 |
8.36 |
|||
| Recept |
1841-23T |
1821-23T |
1811-23T |
24.66 |
7.87 |
||||
7W2 |
Plug | 1840-72T | 1820-72T | 1810-72T | 25.25 | 8.36 | |||
| Recept | 1841-72T | 1821-72T | 1811-72T | 24.66 | 7.87 | ||||
11W1 |
Plug | 1840-11T | 1820-11T | 1810-11T | 25.25 | 8.36 | |||
| Recept | 1841-11T | 1821-11T | 1811-11T | 24.66 | 7.87 | ||||
| B |
5W5 |
Plug | See 1700 Series | 53.04 | 38.96 | 47.04 | 8.36 | ||
| Recept | 38.38 | 7.87 | |||||||
13W3 |
Plug | 1840-13T | 1820-13T | 1810-13T | 38.96 | 8.36 | |||
| Recept | 1841-13T | 1821-13T | 1811-13T | 38.38 | 7.87 | ||||
17W2 |
Plug | 1840-12T | 1820-12T | 1810-12T | 38.96 | 8.36 | |||
| Recept | 1841-12T | 1820-12T | 1811-12T | 38.38 | 7.87 | ||||
21W1 |
Plug | 1840-21T | 1820-21T | 1810-21T | 38.96 | 8.36 | |||
| Recept | 1841-21T | 1821-21T | 1811-21T | 38.38 | 7.87 | ||||
| C |
8W8 |
Plug | See 1700 Series | 69.32 | 55.42 | 63.50 | 8.36 | ||
| Recept | 54.84 | 7.87 | |||||||
21W4 |
Plug | 1840-24T | 1820-24T | 1810-24T | 55.42 | 8.36 | |||
| Recept | 1841-24T | 1821-24T | 1811-24T | 54.84 | 7.87 | ||||
| D |
36W4 |
Plug | 1840-34T | 1820-34T | 1810-34T | 66.93 | 52.81 | 61.11 | 11.07 |
| Recept | 1841-34T | 1821-34T | 1811-34T | 52.43 | 10.74 | ||||
| * Part Numbers includes Housing, and Preloaded Signal Contacts
and High PowerContacts (Preloaded). * Housing with Preloaded Signal Contacts and High PowerContacts may be ordered seperately. Contact Ho Chien to Order. * To order High PowerContacts only sperately, see table below for Part Numbers. * Economic stamp pin type on signal contacts available. * Zinc shell, Insulation color and gold on contact options are available. Contact Ho Chien for more info. |
|||||||||
High Power Contacts - Right Angle PCB Type
|
|
||||||||||||||||||||||||
|
|
|
|
