Ho Chien Enterprise Co., Ltd.

High Power Combo D-Sub - Solder Cup Type

Material:

Shell: Steel w/ Tin Plated (optional Zinc plating)
Signal Contacts: Berylium Copper
High Power Contacts: Brass
Signal Contact Plating: 0.000005" Gold
High Power Contact Plating: 0.000015" Gold
Contact Underplating: 0.000100" min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O

Electrical:

Signal Contact Rating: 7.5 Amp
High Power Contact Rating: 40, 20 or 10 Amp
Dielectric Withstanding: 1500V at sea level
Operation Temperature: -55^oC to +105^oC

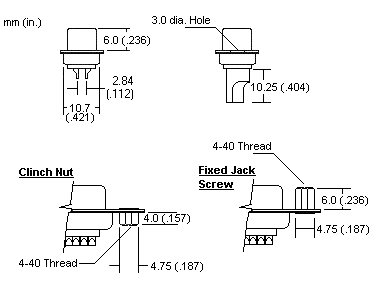

Mechanical Specification and Mounting Option:

Option	Part Number (Suffix)
3.0 dia Hole	000 (Standard)
Fixed Jack Screw	2NA
Clinch Nut	2N

Ordering Part Numbers

Shell Size	Contact Arrangements (Front view of Plug/ Rear view of Recept)	Plug \ Recept	Part Number		Dimensions mm
Shell Size		Plug \ Recept	40 Amps	20 Amps	A	B	C	D
E	2W2	Plug	2W2AP3T0BH000	2W2AP3T0BG000	30.81	16.92	24.88	8.36
	2W2	Recept	2W2AS3T0BH000	2W2AS3T0BG000		16.33		7.87
	5W1	Plug	5W1AP3TFBH000	5W1AP3TFBG000		16.92		8.36
	5W1	Recept	5W1AS3TFBH000	5W1AS3TFBG000		16.33		7.87
A	3W3	Plug	3W3AP3T0BH000	3W3AP3T0BG000	39.14	25.25	33.32	8.36
	3W3	Recept	3W3AS3T0BH000	3W3AS3T0BG000		24.66		7.87
	7W2	Plug	7W2AP3TFBH000	7W2AP3TFBG000		25.25		8.36
	7W2	Recept	7W2AS3TFBH000	7W2AS3TFBG000		24.66		7.87
	11W1	Plug	11W1AP3TFBH000	11W1AP3TFBG000		25.25		8.36
	11W1	Recept	11W1AS3TFBH000	11W1AS3TFBG000		24.66		7.87
B	5W5	Plug	5W5AP3T0BH000	5W5AP3T0BG000	53.04	38.96	47.04	8.36
	5W5	Recept	5W5AS3T0BH000	5W5AS3T0BG000		38.38		7.87
	13W3	Plug	13W3AP3TFBH000	13W3AP3TFBG000		38.96		8.36
	13W3	Recept	13W3AS3TFBH000	13W3AS3TFBG000		38.38		7.87
	21W1	Plug	21W1AP3TFBH000	21W1AP3TFBG000		38.96		8.36
	21W1	Recept	21W1AS3TFBH000	11W1AS3TFBG000		38.38		7.87
C	8W8	Plug	8W8AP3T0BH000	8W8AP3T0BG000	69.32	55.42	63.50	8.36
	8W8	Recept	8W8AS3T0BH000	8W8AS3T0BG000		54.84		7.87
	21W4	Plug	21W4AP3TFBH000	21W4AP3TFBG000		55.42		8.36
	21W4	Recept	21W4AS3TFBH000	21W4AS3TFBG000		54.84		7.87
D	36W4	Plug	36W4AP3TFBH000	36W4AP3TFBG000	66.93	52.81	61.11	11.07
D	36W4	Recept	36W4AS3TFBH000	36W4AS3TFBG000	66.93	52.43	61.11	10.74
* Part Numbers includes Housing, and Preloaded Signal Contacts and High Power Contacts w/ Ferrule packaged seperately. * Housing with Preloaded Signal Contacts and High Power Contacts w/ Ferrule may be ordered seperately. Contact Ho Chien. * To order High Power Contacts w/ Ferrule only sperately, see table below for Part Numbers. * Economic stamp pin type on signal contacts available. * 10 Amp, Zinc shell, Insulation color and gold on contact options are available. Contact Ho Chien for more info.

High Power Contacts - Solder Cup Type

For Ordering Individual Contacts		Part Number		Dimensions (mm)
Rating (Amps)	Wire Size (AWG)	Plug Contact	Recept Contact	A	B	C
40	# 8	PS-P13	PS-S13	4.6	5.5	5.5
20	# 12	PS-P12	PS-S12	2.7	3.6	5.0
10	# 16	PS-P11	PS-S11	1.7	2.5	4.5
