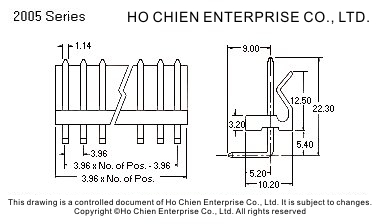

2005 Series
0.156" Center Header; Friction Lock
[ Right Angle ]

Material:

Contact: Brass
Contact Plating: 0.000150" Tin over 0.000100" Nickel Underplating
Insulator:?/font>Nylon 66; rated UL94V-O
Mating Connector: 2006 Series

Electrical:

Current Rating: 5 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 500 Megohms Min. DC 500V
Dielectric Strength: 1500V AC
Operation Temperature: -40oC to +105oC



Ordering Part Number

2005 - [][]
Series Number Number of Positions

[ 1 thru 20 pins ]
