Ho Chien Enterprise Co., Ltd.

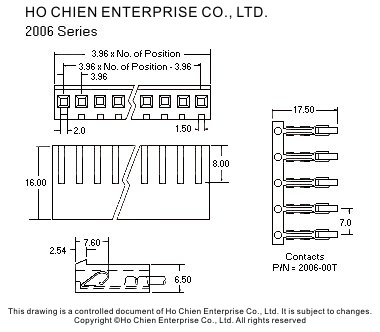

2006 Series
0.156" Center Terminal Housing; Ramp

Material:

Contact: Phosphor Bronze
Contact Plating: 0.000150" Tin over 0.000100" Nickel Underplating
Insulator:?/font>Nylon 66; rated UL94V-O
Mating Connector: 2002, 2003, 2004, 2005, Series

Electrical:

Current Rating: 5 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 500 Megohms Min. DC 500V
Dielectric Strength: 1500V AC
Operation Temperature: -40^oC to +105^oC

Ordering Part Number

2006 -	[][]
Series Number	Number of Positions
	[ 2 thru 20 pins ]

Terminal Contacts Part Number: 2006-00T
Quantity per reel: 6000 pcs
