Ho Chien Enterprise Co., Ltd.

2127 Series -
1.27 x 1.27mm (0.05"x0.05") ctr. IDC Socket for .025" ctr flat ribbon cable

Materials:

Contact: Phosphor Bronze
Contact Plating: Selective Gold
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Color: Black

Electrical:

Contact Current Rating: 0.5 Amp
Contact resistance: 30 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 250V AC
Dielectric Withstanding: 500V AC min. rms
Operation Temperature: -40^oC to +105^oC

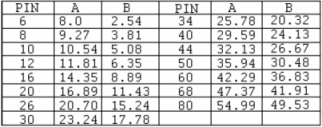

Drawing : 2127 pdf file.

RoHs

Ordering Part Number

2127 -	[][]	[]	- []
Series Number	Number of Positions	Contact Plating	Options (Strain Relief is not available)
	6, 8, 10, 12, 16, 20 26, 30, 34, 40, 44 50, 60, 68, 80	Blank: 5u" Gold F: 10u" Gold E: 15u" Gold D: 30u" Gold	Blank: With Polarization N: Without Center Polarization
