2271, 2272, 2272M Series
1.27*1.27mm (0.05x0.05") 0.46mm Square Pin
Un-shrouded SMD Header Strip; Dual Row

Material:
Contact: Copper Alloys
Contact Plating: Gold over 0.000100" Nickel Underplating
Insulator: Nylon 6T
Insulator Color: Black

Electrical:
Current Rating: 1 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 500 Megohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -55oC to +105oC

Drawing : 2272 2272M (pdf file)

pic_2272M.gif ?


Ordering Part Number

227[]

[] -

[]

X[][]

G

Series Number

Plastic Height

Number of Rows

Number of Positions Per Row

Contact Plating

2271 (Straight)
2271R (Right Angle)

Blank: 1.5mm
A: 1.0mm
C: 2.0mm
D: 2.5mm

1: 1 row

[ 2 thru 40 pins ]

G: 5u" Gold

2272 (Straight)
2272R (Right Angle)

2272M (Surface Mount)

2: 2 row

?!--[endif]-->

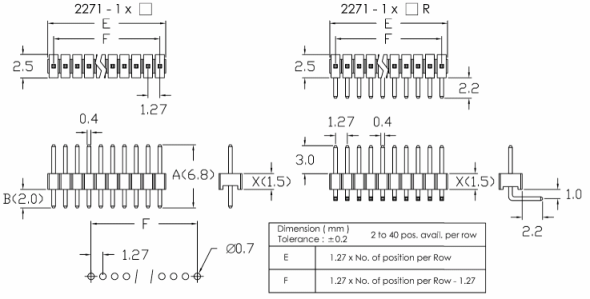

2271

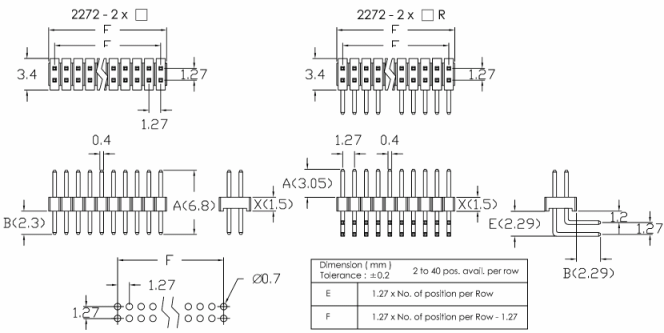

2272

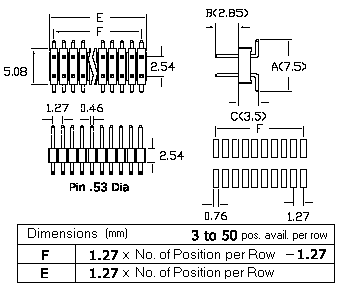

2272M Surface Mount
