2538 Series

0.050" (1.27mm) Center Shrouded Header Straight / SMT w Post
Right Angle w/o Post

Material:
Contact: Copper Alloy
Contact Plating: Gold / Tin over 100u" Nickel Underplating
Insulator: PolyesterUL94V-O Nylon-6T
Insulator Color: Black
Mating Connector: 2539, 2547 Series

Electrical:
Current Rating: 1.0 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 300V AC
Operation Temperature: -55oC to +105oC









RoHs
Ordering Part Number
2538 - [][] [] [][] [][]
Series Number Number of Positions Body Height Contact Plating Packaging
2538: Straight w Post 10, 12, 14, 16, 18, 20, 22, 24, 26
28, 30, 32, 34, 36, 38, 40, 42, 44
46, 48, 50, 52, 54, 56, 58..... 120



 Blanket: 5.70mm
H: 7.2mm		 T:  Tin elected Gold
G: 5u" Gold		 P: Cap
T: Tape Reel
PT: Cap & Tape Reel

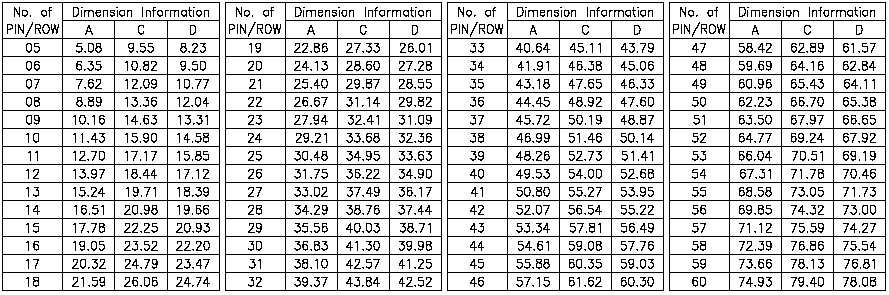

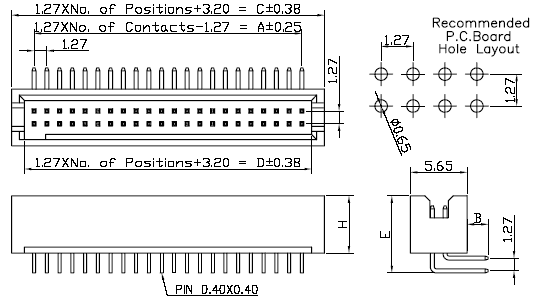

2538R: Right Angle

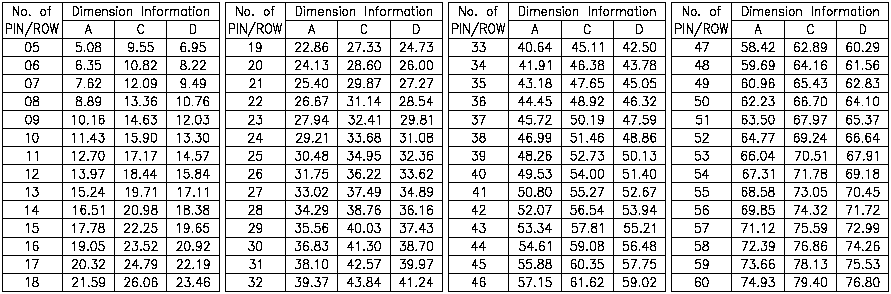

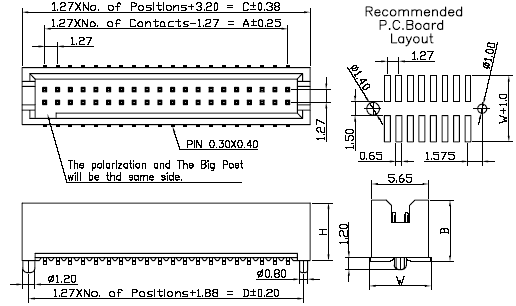

2538M: SMD

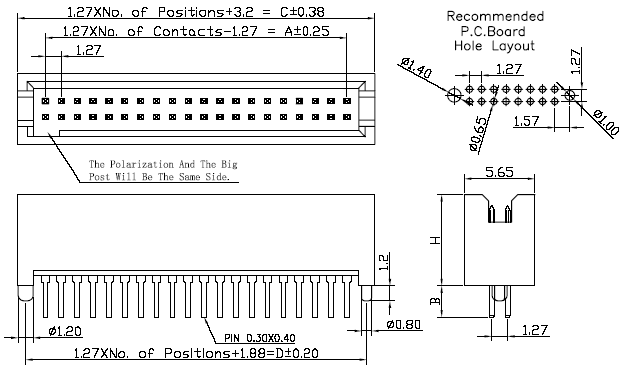

2538: Straight w Post

2538R: Right Angle

2538M: SMD
