2542-2 Series
0.100" x 0.100" Ctr Dual-Insulated Un-shrouded Header Strip

Material:
Contact: Phosphor Bronze
Contact Plating: Gold or Tin over 0.000100" Nickel Underplating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O (Through Hole),
                N6 High Temperature for SMD Type
Insulator Color: Black
Mini Jumper: 2546 Series

Electrical:
Current Rating: 3 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 5000 Megohms Min. DC 500V
Dielectric Strength: 1000V AC
Operation Temperature: -55oC to +140oC


Ordering Part Number

2542-2

-2

-[][]

[]

[]

-[][][]

[]

Series Number

2 row

Number of
Positions
per row

Contact
Plating

Package

Dimension C

Dimension A & B

2542-2 (Through Hole)
2542M-2 (SMD)



2 thru 40

T: 150u" Tin
G: 5u" Gold
F: 10u" Gold
E: 15u" Gold
D: 30u" Gold
DT: 30u" Selected Gold (2mm Mating End)

Blank: Bag
B: Tube + Cap (SMD)
T: T/R + Cap (SMD)

Example:
0.57" = 14.478mm
Enter = 145
Contact us for details.

See Suffix Table
Example:
A = 21mm B = 3mm
Enter = H
Contact us for details.

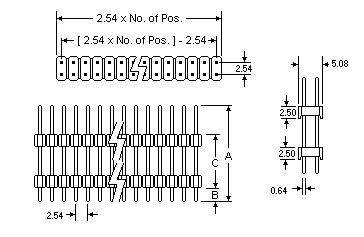

(Through Hole)

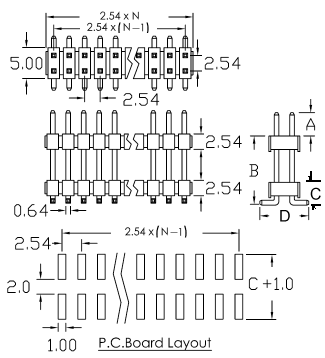

(SMD)

Suffix Table - DIMENSIONS (mm)
For Reference only.

DIM.
A

DIM. B

3.00

8.40

11.00

A

-

11.30

B

-

12.20

C

-

13.50

D

-

16.00

E

O

18.50

F

P

21.00

H

Q

23.50

I

R

26.20

J

S

28.00

K

U

31.20

L

W

33.80

M

Y

36.30

N

Z
