Ho Chien Enterprise Co., Ltd.

2546 Series
0.100" Center Mini Jumpers

Material:

Contact: Phosphor Bronze
Contact Plating: Gold or Tin over 0.000100" Nickel Underplating
Insulator:?/font>PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black

Electrical:

Current Rating: 1 Amp Max.
Contact Resistance: 20 Milliohms. Max. @ DC 500V
Insulation Resistance: 5000 Megohms Min. DC 500V
Dielectric Strength: 500V AC @ 1 Minute.
Operation Temperature: -55^oC to +140^oC

Drawing: 2546 (pdf)

Ordering Part Number

Pitch	Series Number	Jumper Type	Insulator Colort	Contact Plating?/font>
2.54mm / 0.1"	2546 -	- [][][]	[]	- []
		01A: 6.0mm Body Height / Close Type 01B: 6.0mm Body Height / Open Type 02A: 8.0mm Body Height / Close Type 02B: 8.0mm Body Height / Open Type 04: 6.0mm Body Height / Open 05B: 4.5mm Body Height / Open Type 06B: 13.5mm Body Height w Pull tap?/ Open type 07A: 2.0mm Body Height?/ Close type 07B: 2.0mm Body Height?/ Close type	Blank: Black R: Red Y: Yellow B: Blue W: White	Blank: 5u" Gold F: 10u" Gold E: ?5u" Gold D: ?0u" Gold

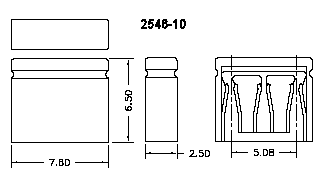

5.08mm / 0.2"	2546 -	10: 6.5mm Body Height / Closed / Black Insulator	Blank: Black R: Red Y: Yellow B: Blue W: White	Blank: 5u" Gold F: 10u" Gold E: ?5u" Gold D: ?0u" Gold
