2544-2 Series

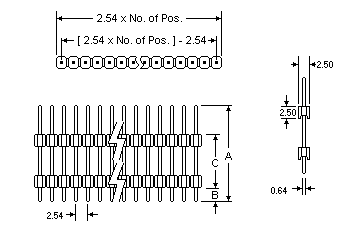

0.100" Center Dual-Insulated Un-shrouded Header Strip

Material:
Contact: Phosphor Bronze
Contact Plating: Gold or Tin over 0.000100" Nickel Underplating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black
Mini Jumper: 2546 Series

Electrical:
Current Rating: 3 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 5000 Megohms Min. DC 500V
Dielectric Strength: 1000V AC
Operation Temperature: -55oC to +140oC



RoHs

Ordering Part Number

2544-2

-[][]

[]

-[][][]

[]

Series Number

Number of total Positions

Contact Plating

Dimension C

Dimension A & B



[ 1 thru 40 pins ]

T: 150u" Tin
G: 5u" Gold
F: 10u" Gold
E: 15u" Gold
D: 30u" Gold

Example:
0.57" = 14.478mm
Enter = 145

See Suffix Table
Example:
A = 21mm B = 3mm
Enter = H
Specify A,B,C length.



Suffix Table - DIMENSIONS (mm)

DIM.
A

DIM. B

3.00

8.40

11.00

A

-

11.30

B

-

12.20

C

-

13.50

D

-

16.00

E

O

18.50

F

P

21.00

H

Q

23.50

I

R

25.50

V

-

26.20

J

S

28.00

K

U

31.20

L

W

33.80

M

Y

36.30

N

Z
