Ho Chien Enterprise Co., Ltd.

2545M SMT Series
0.100" Ctr Un-shrouded Header Strip; Single Row
[ Surface Mount ]

Material:

Contact: Phosphor Bronze
Contact Plating: Gold or Tin over 0.000100" Nickel Underplating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black
Mini Jumper: 2546 Series

Electrical:

Current Rating: 3 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 5000 Megohms Min. DC 500V
Dielectric Strength: 1000V AC
Operation Temperature: -55^oC to +140^oC

RoHs

Ordering Part Number

2545M -	1 X	-[][]	G	A	XX	T
Series Number	No.per Rows	Number of Positions Per Row	Finished Plating	Peg	Mating Length	Package
		[ 03 thru 30 pins ]	T: 150u" Tin G: 5u" Gold F: 10u" Gold E: 15u" Gold D: 30u" Gold	A : w/o Peg. B : w Peg.	01: 0.12" (3.05mm) 02: 0.24" (6.00mm) 03: 0.32" (8.13mm) 04: 0.42" (10.67mm)	Blanket : Tube T: Tape Reel (not available on A w peg version)

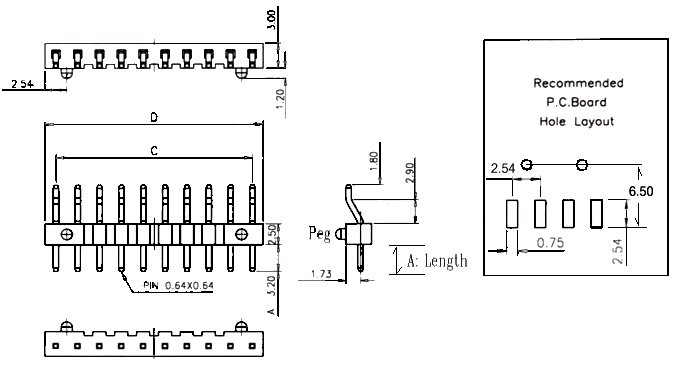

Dimensions (mm)
C	[ 2.54 x No. of Pos. ] - 2.54
D	2.54 x No. of Pos.
