2550 Series
0.100" Center Terminal Housing

Material:

Contact: Phosphor Bronze
Contact Plating: Gold over 0.000100" Nickel Underplating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black
Mating Connector:2544, 2542, 2543, 2545 Series

Electrical:

Current Rating: 3 Amp Max.
Contact Resistance: 10 Milliohms. Max.
Insulation Resistance: 500 Megohms Min. DC 500V
Dielectric Strength: 1500V AC
Operation Temperature: -25^oC to +105^oC

** Self crimp Type: 2540-E

Ordering Part Number

Plug Key Part Number: 2550-KB (Black Color)
                                     2550-KW (White Color)
Quantity per bag: 10000 pcs
Terminal Contacts Part Number: 2550-10GT
Quantity per reel: 10000 pcs

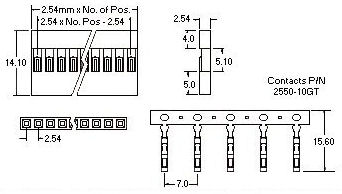

Single Row

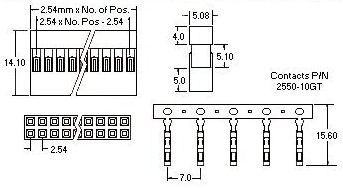

Dual Row
