2543 Series
0.100" x 0.100"Ctr Un-shrouded Header Strip; Dual Row
[ Right Angle ]

Material:
Contact: Phosphor Bronze
Contact Plating: Gold or Tin over 0.000100" Nickel Underplating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black
Mini Jumper: 2546 Series

Drwaing : 2543

Electrical:
Current Rating: 3 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 5000 Megohms Min. DC 500V
Dielectric Strength: 1000V AC
Operation Temperature: -55^oC to +140^oC

Ordering Part Number

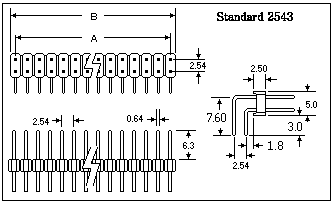

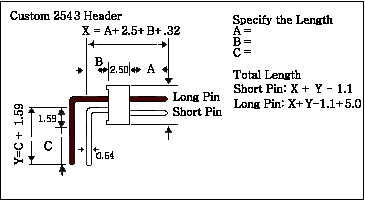

Dimensions (mm)

A

[ 2.54 x No. of Pos. ] - 2.54

B

2.54 x No. of Pos.
