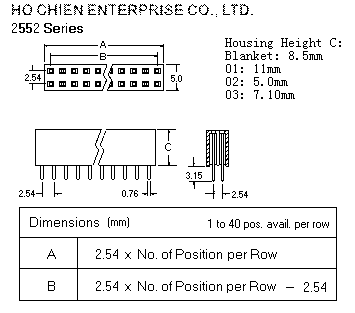

Standard Pitch w/o Peg 2.54
x 2.54mm
|
|
255[] -
|
2 X
|
[][]
|
[]
|
- []
|
- []
|
- [][]
|
|
Series Number
|
2 Rows
|
Number of Positions
Per Row
|
Contact Plating
|
Key
|
Housing High
|
Pitch
|
|
2552 Straight
2553 Right Angle
|
|
[ 2 thru 40 pins ]
|
G: 5u" Gold
|
Blanket: w/o key
B: w Key
|
Blanket: 8.5mm
1: 11mm
2 : 5.0mm
3 : 7.10mm
|
Blanket: 2.54x2.54mm
|
|

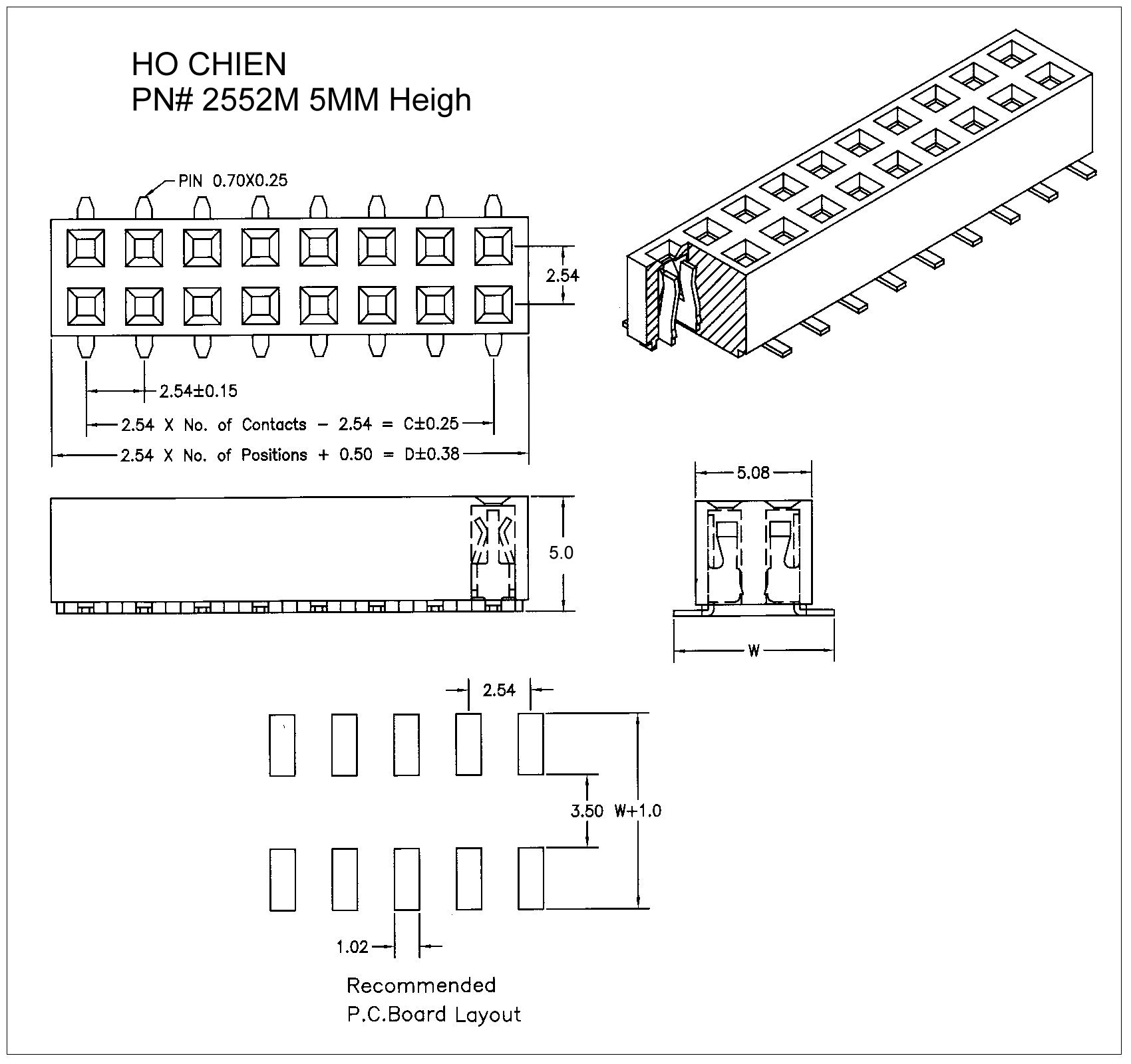

2552M SMD
|
[ 2 thru 40 pins ]
|
G: 5u" Gold
|
Blanket: w/o key
|
5 : 5.0mm
|
T: T/R w Cap
|
|

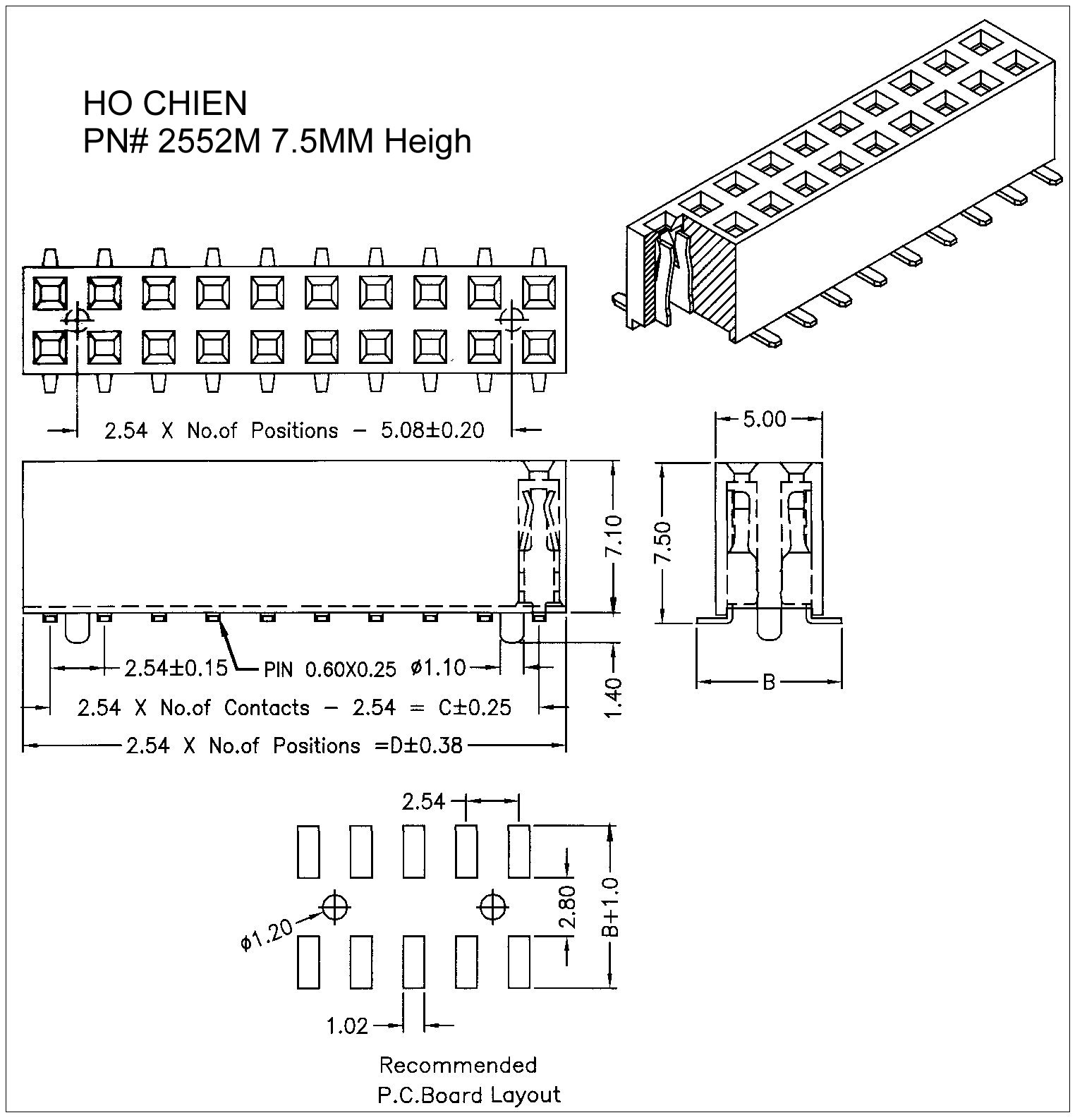

2552M SMD
|
[ 2 thru 40 pins ]
|
G: 5u" Gold
D: 30u" Selected Gold
|
Blanket: w/o key
B: w Key
|
7 : 7.1mm
|
T: T/R w Cap
|
|

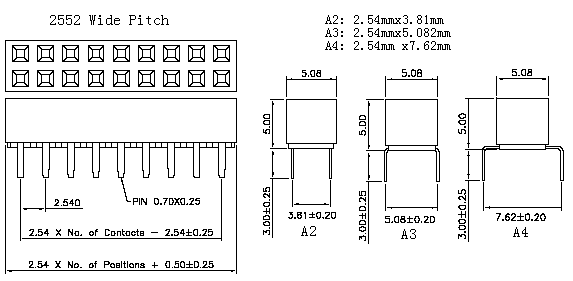

Wide Pitch
|
|
2552 -
|
2 X
|
[][]
|
[]
|
- []
|
- []
|
- [][]
|
|
Series Number
|
2 Rows
|
Number of Positions
Per Row
|
Contact Plating
|
Key
|
Housing High
|
Pitch
|
|
|
[ 1 thru 40 pins ]
|
G: 5u" Gold
F: 10u" Gold
E: 15u" Gold
D: 30u" Gold
|
Blanket: w/o Key
B: w Key
|
Blanket: 5.0mm
|
A2: 2.54x3.81mm
A3: 2.54x5.082mm
A4: 2.54x7.62mm
|
|

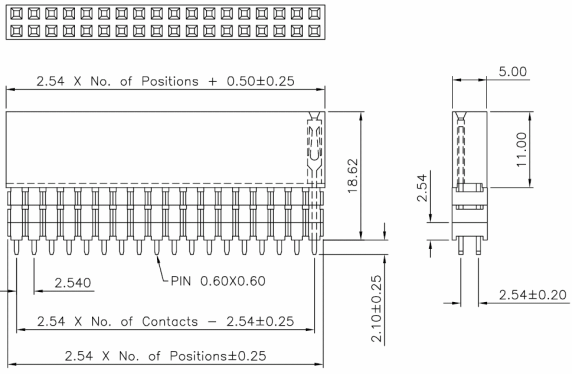

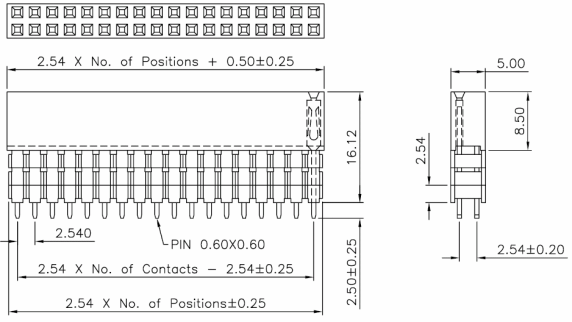

Elevated Type (Stack Type)
|
|
2552 -
|
2 X
|
[][]
|
[]
|
- []
|
[]
|
|
Series Number
|
2 Rows
|
Number of Positions
Per Row
|
Contact Plating
|
Housing High
|
Stack Number
|
|
|
[ 1 thru 40 pins ]
|
G: 5u" Gold
F: 10u" Gold
E: 15u" Gold
D: 30u" Gold
|
2: 8.5mm
4: 11mm
|
A: 1 stack 2.54mm X 1
B: 2 stack 2.54mm X 2
C: 3 stack 2.54mm X 3
D: 4 stack 2.54mm X 4
E: 5 stack 2.54mm X 5
F: 6 stack 2.54mm X 6
G: 7 stack 2.54mm X 7
|
