Ho Chien Enterprise Co., Ltd.

2553 Series
?.100"x 0.100" Dual Row PCB Socket Strip
[ Right Angle ]

Material:
Contact: Phosphor Bronze
Contact Plating: Gold or Tin over 0.000100" Nickel Underplating
Insulator:?/font>PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black
Mating Connectors: 2542 , 2543 Series

Electrical:
Current Rating: 3 Amp Max.
Contact Resistance: 30 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -55^oC to +105^oC

Ordering Part Number

2553 -	2 X	[][]	[]	- []
Series Number	Number of Rows	Number of Positions Per Row	Contact Plating	Key

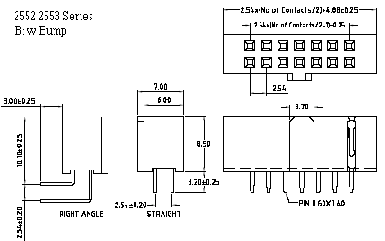

		[ 2 thru 40 pins ]	G: 0.000005" Gold F: 0.0 00010" Gold E: 0.000015" Gold D: 0.000030" Gold	Blanket: w/o key B: w Key/Bump
