| 3006 Series 0.370" D-Sub PCB Machine Contacts; w/o Mounting Brackets Material: Shell: Steel w/ Tin Plated (optional Zinc plating) Contact: Berylium Copper - Precision Machine Formed Contact Plating: 0.000127mm [0.000005"] Gold Contact Underplating: 0.00254mm [0.000100"] min. Nickel Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O Color: White (optional Black and Blue) Alternative: Stamped Contact Type [ click here ] Electrical: Contact Current Rating: 7.5 Amp Contact resistance: 10 Miliohms Max. Insulation Resistance: 1000 Megohms @ 1000V AC Dielectric Withstanding: 1000V AC min. rms Operation Temperature: -55oC to +105oC
|
|
| Ordering Part Number | |||||||||
| Shell Size |
No. Pos. |
Plug (M) / Recept (F) |
Tin Shell | Zinc Shell | |||||
| Mounting Hole | Clinch Nut | Fixed Jackscrew | BoardlocK W #440 Threaded | Clinch Nut w Boardlock | Fixed Jackscrew w Boardlock |
Mounting Hole | |||
| E | 9 | Plug (M) | 3006-01 | 3006-01-2N | 3006-01-2NA | 3006-01B | 3006-01-2NB |
3006-01-2NAB |
3006-01Z |
| Recept(F) | 3006-11 | 3006-11-2N | 3006-11-2NA | 3006-11B | 3006-11-2NB | 3006-11-2NAB | 3006-11Z | ||
| A | 15 | Plug (M) | 3006-02 | 3006-02-2N | 3006-02-2NA | 3006-02B | 3006-02-2NB |
3006-02-2NAB |
3006-02Z |
| Recept(F) | 3006-12 | 3006-12-2N | 3006-12-2NA | 3006-12B | 3006-12-2NB |
3006-12-2NAB |
3006-12Z | ||
| B | 25 | Plug (M) | 3006-05 | 3006-05-2N | 3006-05-2NA | 3006-05B | 3006-05-2NB |
3006-05-2NAB |
3006-05Z |
| Recept(F) | 3006-15 | 3006-15-2N | 3006-15-2NA | 3006-15B | 3006-15-2NB |
3006-15-2NAB |
3006-15Z | ||
| C | 37 | Plug (M) | 3006-06 | 3006-06-2N | 3006-06-2NA | 3006-06B | 3006-06-2NB |
3006-06-2NAB |
3006-06Z |
| Recept(F) | 3006-16 | 3006-16-2N | 3006-16-2NA | 3006-16B | 3006-16-2NB |
3006-16-2NAB |
3006-16Z | ||
| D | 50 | Plug (M) | 3006-07 | 3006-07-2N | 3006-07-2NA | 3006-07B | 3006-07-2NB |
3006-07-2NAB |
3006-07Z |
| Recept(F) | 3006-17 | 3006-17-2N | 3006-17-2NA | 3006-17B | 3006-17-2NB | 3006-17-2NAB | 3006-17Z | ||
| * Also Available (Contact Ho Chien for more information): - Mounting options in Zinc Shell. - 4 pronge boardlock - Contact gold plating upgrade. ** - Custom length of contact leads. ** - All connectors can be customly altered to fit your needs. ** ** minimum orders and/or tooling charges may apply ** Board Lock code changed D to B @ 4/16/07' |
|||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
|

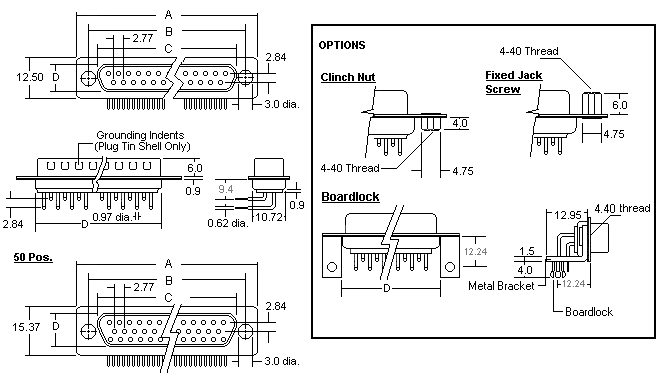

Mechanical Specification and Mounting Option
|
|
|
|
|
