| 3013 Series 0.318" ( 8.10mm ) D-Sub PCB Right Angle Material: Shell: Steel w/ Tin Plated Contact: Phosphor Bronze Contact Plating: 0.000127mm [0.000005"] Gold Contact Underplating: 0.00254mm [0.000100"] min. Nickel Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O Color: Black Alternative: Machine Contact Type [ click here ] Electrical: Contact Current Rating: 5 Amp Contact resistance: 10 Miliohms Max. Insulation Resistance: 1000 Megohms @ 1000V AC Dielectric Withstanding: 1000V AC min. rms Operation Temperature: -55oC to +105oC |
|
| Ordering Part Number | |||||||||||
| Shell Size |
No. Pos. |
Plug / Recept |
Tin Shell | ||||||||
| Jackscrew Boardlock | Rivet_Insert Boardlock |
Rivet Insert Boardlock w_Jackscrew |
Boardlock w_Fix Hex Nut Front |
4 Pronge
boardlock w_Fix Round Nut Front |
|||||||
| E | 9 | Plug | 3013-01 | 3013-01A | 3013-01AA | 3013-01-2NA |
3013-01-2NR |
||||
| Recept | 3013-11 | 3013-11A | 3013-11AA | 3013-11-2NA |
3013-11-2NR |
||||||
| A | 15 | Plug | 3013-02 | 3013-02A | 3013-02AA | 3013-02-2NA |
3013-02-2NR |
||||
| Recept | 3013-12 | 3013-12A | 3013-12AA | 3013-12-2NA |
3013-12-2NR |
||||||
| B | 25 | Plug | 3013-05 | 3013-05A | 3013-05AA | 3013-05-2NA |
3013-05-2NR |
||||
| Recept | 3013-15 | 3013-15A | 3013-15AA | 3013-15-2NA |
3013-15-2NR |
||||||
| C | 37 | Plug | 3013-06 | 3013-06A | 3013-06AA | 3013-06-2NA |
3013-06-2NR |
||||
| Recept | 3013-16 | 3013-16A | 3013-16AA | 3013-16-2NA |
3013-16-2NR |
||||||

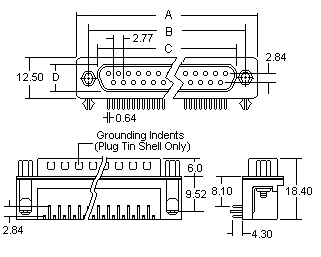

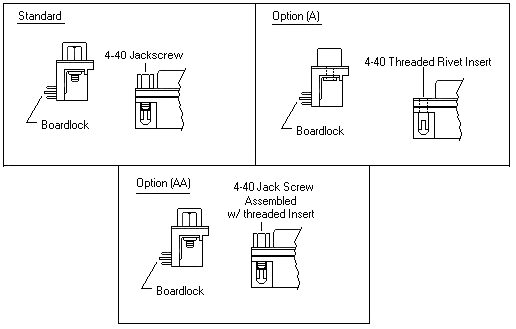

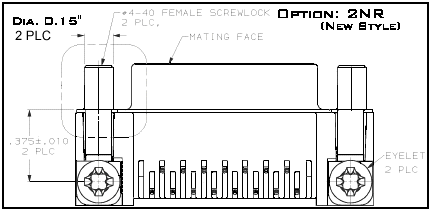

| - Mounting options in Tin Shell. - 4 pronge boardlock - Contact gold plating upgrade. ** - Custom length of contact leads. ** - All connectors can be customly altered to fit your needs. ** ** minimum orders and/or tooling charges may apply - 2NA: Fix Hex Nut 6mm mount front, Boardlock. - 2NR: Fix Round Nut 6mm mount front, Boardlock. |
|||||||||||
|
