3003 Series
0.283" D-Sub PCB Machine Contacts

Material:
Shell: Steel w/ Tin Plated (optional Zinc plating)
Contact: Brass Copper - Precision Machine Formed
Contact Plating: 0.000127mm [0.000005"] Gold
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Color: White, Black

Alternative: Stamped Contact Type [ click here ]

Electrical:
Contact Current Rating: 5 Amp
Contact resistance: 10 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 1000V AC
Dielectric Withstanding: 1000V AC min. rms
Operation Temperature: -55^oC to +105^o

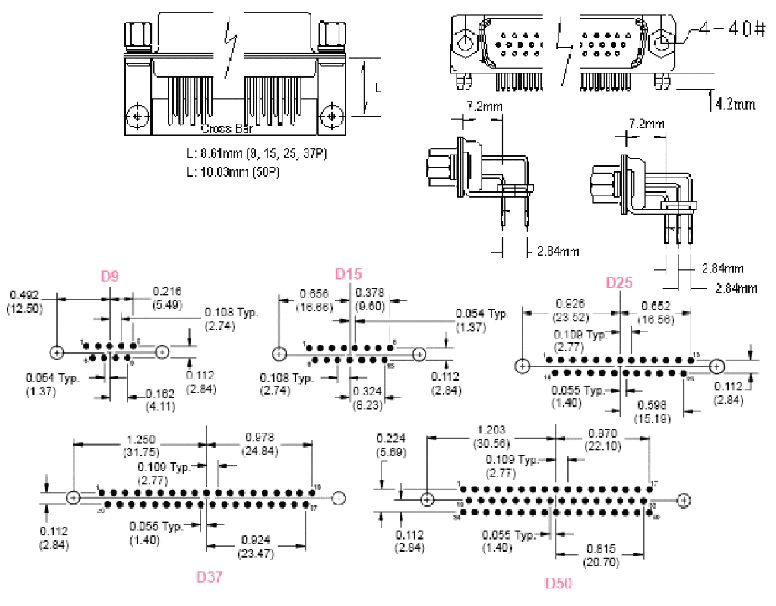

^{Drawing : 3003 (pdf)
Drawing : 3003 w Cross Bar, L Bracket, Fix Nut.}

Ordering Part Numbers

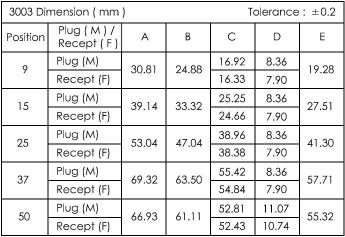

Mechanical Specification and Mounting Option:
