| 3008 Series D-Sub Crimp Housing Material: Shell: Steel w/ Tin Plated (optional Zinc plating) Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O Contacts: [ click here ] Electrical: Contact Current Rating: 5 Amp Contact resistance: 10 Miliohms Max. Insulation Resistance: 1000 Megohms @ 1000V AC Dielectric Withstanding: 1000V AC min. rms Operation Temperature: -55oC to +105oC
|
|
| Ordering Part Number | ||||||||
| Shell Size |
No.
of Position |
Plug
(M) / Recept (F) |
Tin Shell | Zinc Shell | ||||
| Mounting Hole | Clinch Nut | Fixed Jackscrew | Mounting Hole | Clinch Nut | Fixed Jackscrew | |||
| E | 9 | Plug (M) | 3008-01T | 3008-01T-2N | 3008-01T-2NA | 3008-01Z | 3008-01Z-2N | 3008-01Z-2NA |
| Recept (F) | 3008-11T | 3008-11T-2N | 3008-11T-2NA | 3008-11Z | 3008-11Z-2N | 3008-11Z-2NA | ||
| A | 15 | Plug (M) | 3008-02T | 3008-02T-2N | 3008-02T-2NA | 3008-02Z | 3008-02Z-2N | 3008-02Z-2NA |
| Recept (F) | 3008-12T | 3008-12T-2N | 3008-12T-2NA | 3008-12Z | 3008-12Z-2N | 3008-12Z-2NA | ||
| B | 25 | Plug (M) | 3008-05T | 3008-05T-2N | 3008-05T-2NA | 3008-05Z | 3008-05Z-2N | 3008-05Z-2NA |
| Recept (F) | 3008-15T | 3008-15T-2N | 3008-15T-2NA | 3008-15Z | 3008-15Z-2N | 3008-15Z-2NA | ||
| C | 37 | Plug (M) | 3008-06T | 3008-06T-2N | 3008-06T-2NA | 3008-06Z | 3008-06Z-2N | 3008-06Z-2NA |
| Recept (F) | 3008-16T | 3008-16T-2N | 3008-16T-2NA | 3008-16Z | 3008-16Z-2N | 3008-16Z-2NA | ||
| D | 50 | Plug (M) | 3008-07T | 3008-07T-2N | 3008-07T-2NA | 3008-07Z | 3008-07Z-2N | 3008-07Z-2NA |
| Recept (F) | 3008-17T | 3008-17T-2N | 3008-17T-2NA | 3008-17Z | 3008-17Z-2N | 3008-17Z-2NA | ||
| *
Part Number includes Housing Only. Contacts are ordered separate. * For contact part numbers and specification [ click here ] * Also Available (Contact Ho Chien for more information): - Blue or Black insulation. - All connectors can be customly altered to fit your needs. ** ** minimum orders and/or tooling charges may apply |
||||||||

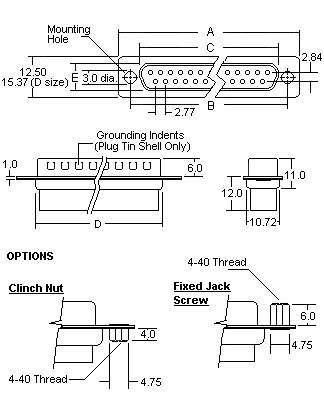

Mechanical Specification and Mounting
Option: |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
