| 3012P Series D-Sub PCB Press Fit Vertical Type Material: Shell: Steel w/ Tin Plated (optional Zinc plating) Contact: Phosphor Bronze Contact Plating: 0.000127mm [0.000005"] Gold Contact Underplating: 0.00254mm [0.000100"] min. Nickel Insulation: Nylon 46, UL94V0 RoHS compliance Electrical: Contact Current Rating: 5 Amp Contact resistance: 10 Miliohms Max. Insulation Resistance: 1000 Megohms @ 1000V AC Dielectric Withstanding: 1000V AC min. rms Operation Temperature: -55oC to +105oC Drawing : 3012P (PDF file)
|
|
| Ordering Part Number | ||||
| D_Sub |
||||
| 3012P- |
- [] |
[] |
[] |
- [][] |
| Series Number | Type | Number of Contact |
Contact Plating Selected Gold/Tin |
Mounting Option |
|
D_Sub |
0: Plug 1: Recept |
1: 9 pos. 2: 15 pos. 5: 25 pos. 6: 37 pos. |
0: Gold Flash 5u" 1: 15u" 2: 30u" |
Blank: Riveted #4-40 NA: Riveted 6.0mm Open Round Nuts on front Shell ND: Riveted w boardlock |
| High Density D_Sub |
||||
| 3312P- |
[][] |
[] |
- [][] |
|
| Series Number |
Number of Contact |
Contact Plating Selected Gold/Tin |
Mounting Option | |
| 3312P: Plug 3322P: Recept |
15: 15 pos. 26: 26 pos. 44: 44 pos. 62: 62 pos. 78: 78 pos. |
0: Gold Flash 5u" 1: 15u" 2: 30u" |
Blank: Riveted #4-40 NA: Riveted 6.0mm Open Round Nuts on front Shell ND: Riveted w boardlock |
|
|
Mechanical

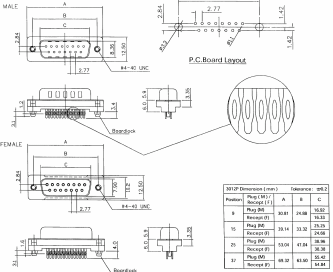

Specification and Mounting Option:
D-Sub
|
|
||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
