| 3013-FE Series 0.318"(8.10mm) D-Sub /Ferrite Bead (EMI) Material: Shell:
Steel w/ Tin Plated (optional Zinc plating) Electrical: Contact
Current Rating: 5 Amp Drawing (pdf) : 3013 Ferrite series Ferrite (EMI) Specification and Curve
|
|
| Ordering Part Number | |||||||||
| Shell Size |
No. Pos. |
Plug (M) / Recept (F) |
Tin Shell | Zinc Shell | |||||
| Jackscrew /
Boardlock |
Rivet Insert
/ Boardlock |
Rivet Insert
/ No Boardlock |
Jackscrew
/ No Boardlock |
Rivet Insert
/ Boardlock w/ Jackscrew |
Rivet Insert
/ No Boardlock w/ Jackscrew |
Jackscrew
/ Boardlock |
|||
| E | 9 | Plug (M) | 3013-01FE | 3013-01FE-A | 3013-01FE-B | 3013-01FE-C | 3013-01FE-AA | 3013-01FE-BA | 3013-01ZFE |
| Recept (F) | 3013-11FE | 3013-11FE-A | 3013-11FE-B | 3013-11FE-C | 3013-11FE-AA | 3013-11FE-BA | 3013-11ZFE | ||
| A | 15 | Plug (M) | 3013-02FE | 3013-02FE-A | 3013-02FE-B | 3013-02FE-C | 3013-02FE-AA | 3013-02FE-BA | 3013-02ZFE |
| Recept (F) | 3013-12FE | 3013-12FE-A | 3013-12FE-B | 3013-12FE-C | 3013-12FE-AA | 3013-12FE-BA | 3013-12ZFE | ||
| B | 25 | Plug (M) | 3013-05FE | 3013-05FE-A | 3013-05FE-B | 3013-05FE-C | 3013-05FE-AA | 3013-05FE-BA | 3013-05ZFE |
| Recept (F) | 3013-15FE | 3013-15FE-A | 3013-15FE-B | 3013-15FE-C | 3013-15FE-AA | 3013-15FE-BA | 3013-15ZFE | ||
| C | 37 | Plug (M) | 3013-06FE | 3013-06FE-A | 3013-06FE-B | 3013-06FE-C | 3013-06FE-AA | 3013-06FE-BA | 3013-06ZFE |
| Recept (F) | 3013-16FE | 3013-16FE-A | 3013-16FE-B | 3013-16FE-C | 3013-16FE-AA | 3013-16FE-BA | 3013-16ZFE | ||
| * Also Available (Contact Ho Chien for more information):
- Mounting options in Zinc Shell. - 4 pronge boardlock - Contact gold plating upgrade. ** - Custom length of contact leads. ** - All connectors can be customly altered to fit your needs. ** ** minimum orders and/or tooling charges may apply |
|||||||||

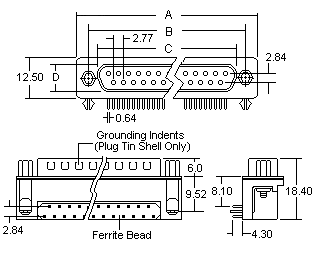

Mechanical Specification
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||
Mounting Option
|
|
|
|
|
