3014 Series ( w/o Bracket)
0.545" D-Sub PCB Machine Contacts

Material:

Shell: Steel w/ Tin Plated (optional Zinc plating)
Contact: Berylium Copper - Precision Machine Formed
Contact Plating: 0.000127mm [0.000005"] Gold
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Color: White

Alternative: Stamped Contact Type [ click here ]

Electrical:

Contact Current Rating: 5 Amp
Contact resistance: 10 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 500V DC
Dielectric Withstanding: 1000V AC min. rms
Operation Temperature: -55^oC to +105^oC

Ordering Part Numbers

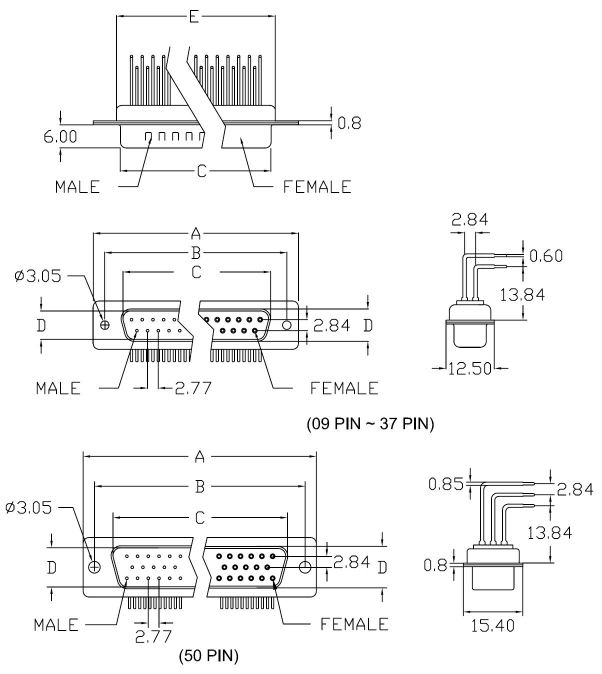

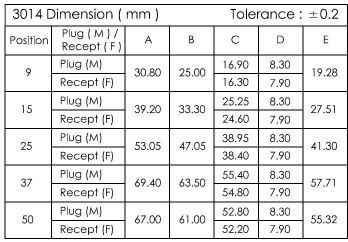

Mechanical Specification
