Material:
Shell: Steel w/ Tin Plated (optional Zinc plating)
Signal Contacts: Berylium Copper
Coaxial Contacts: Brass
Signal Contact Plating: 0.000005" Gold
Coaxial Contact Plating: 0.000015" Gold
High Power Contact Plating: 0.000015" Gold
Contact Underplating: 0.000100" min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
                  UL File# E107536, material D202G30@

Electrical:
Signal Contact Rating: 7.5 Amp
Coax Impedance: 50 ohm or 75 ohm
Coax VSWR: Less than 1.3 - 1.0 up to 500 MHZ
Coax Insertion Loss: 0.1 dB loss at 55 MHZ
High Power Contact Rating: 40, 20 or 10 Amp
Dielectric Withstanding: 1500V at sea level
Operation Temperature: -55^oC to +105^oC

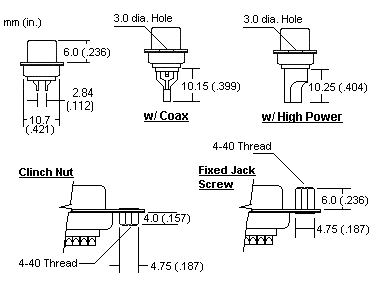

Mechanical Specification and Mounting Option:

Effective Apr. 15, 2001 part numbers for this series have changed. The part numbers below are the current P/N.

Click Here to see a cross reference of the new P/N to the old P/N. For assistance E-Mail us at sales@hochien-connectors.com.

Shell
Size

Contact Arrangements
(Front view of Plug/ Rear view of Recept)

Plug \
Recept

Part Number (Tin Shell)

Housing
Only

Set (Contacts packaged separately)

Coax Combo**

High Power Combo

50 Ohm

75 Ohm

40 Amp

20 Amp

10 Amp

E

2W2

Plug

1100-22T

1150-22T

1170-22T

1140-22T

1120-22T

1110-22T

Recept

1101-22T

1151-22T

1171-22T

1141-22T

1121-22T

1111-22T

5W1

Plug

1100-51T

1150-51T

1170-51T

1140-51T

1120-51T

1110-51T

Recept

1101-51T

1151-51T

1171-51T

1141-51T

1121-51T

1111-51T

A

3W3

Plug

1100-33T

1150-33T

1170-33T

1140-33T

1120-33T

1110-33T

Recept

1101-33T

1151-33T

1171-33T

1141-33T

1121-33T

1111-33T

3V3

Plug

1100-23T

1150-23T

1170-23T

1140-23T

1120-23T

1120-32T

Recept

1101-23T

1151-23T

1171-23T

1141-23T

1121-23T

1111-32T

7W2

Plug

1100-72T

1150-72T

1170-72T

1140-72T

1120-72T

1110-72T

Recept

1101-72T

1151-72T

1171-72T

1141-72T

1121-72T

1111-72T

11W1

Plug

1100-11T

1150-11T

1170-11T

1140-11T

1120-11T

1110-11T

Recept

1101-11T

1151-11T

1171-11T

1141-11T

1121-11T

1111-11T

B

5W5

Plug

1100-55T

1150-55T

1170-55T

1140-55T

1120-55T

1110-55T

Recept

1101-55T

1151-55T

1171-55T

1141-55T

1121-55T

1111-55T

13W3

Plug

1100-13T

1150-13T

1170-13T

1140-13T

1120-13T

1110-13T

Recept

1101-13T

1151-13T

1171-13T

1141-13T

1121-13T

1111-13T

17W2

Plug

1100-12T

1150-12T

1170-12T

1140-12T

1120-12T

1110-12T

Recept

1101-12T

1151-12T

1171-12T

1141-12T

1121-12T

1111-12T

21W1

Plug

1100-21T

1150-21T

1170-21T

1140-21T

1120-21T

1110-21T

Recept

1101-21T

1151-21T

1171-21T

1141-21T

1121-21T

1111-21T

C

8W8

Plug

1100-88T

1150-88T

1170-88T

1140-88T

1120-88T

1110-88T

Recept

1101-88T

1151-88T

1171-88T

1141-88T

1121-88T

1111-88T

21W4

Plug

1100-24T

1150-24T

1170-24T

1140-24T

1120-24T

1110-24T

Recept

1101-24T

1151-24T

1171-24T

1141-24T

1121-24T

1111-24T

D

36W4

Plug

1100-34T

1150-34T

1170-34T

1140-34T

1120-34T

1110-34T

Recept

1101-34T

1151-34T

1171-34T

1141-34T

1121-34T

1111-34T

* The Housing Only Part Numbers includes Housing, and Preloaded Signal Contacts Only.
* Coaxial Contacts w/ Ferrule or High Power Contacts are ordered seperately, see table below for Part Numbers.
* Economic stamp pin type on signal contacts available.
* Shell plating, Insulation color and gold on contact options are available. Contact Ho Chien for more info.
** Coax contacts included in set part numbers are for RG179 Cables. Contact Ho Chien for part number for other cables.

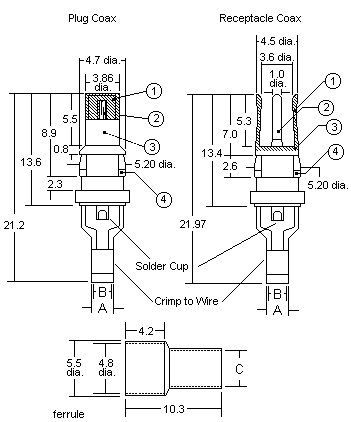

Coaxial Contacts - Solder Cup Type

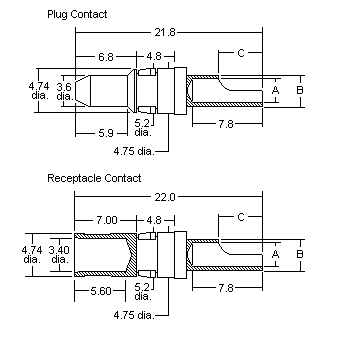

High Power Contacts - Solder Cup Type
