1600 Series
High Power Combo D-Sub - Vertical PCB Type
Update: 5/8/07'
| Material: Shell: Steel w/ Tin Plated (optional Zinc plating) Signal Contacts: Berylium Copper High Power Contacts: Brass Signal Contact Plating: 0.000005" Gold High Power Contact Plating: 0.000015" Gold Contact Underplating: 0.000100" min. Nickel Insulation: PBT & 30% glass fiber reinforced thermo plastic : UL94V-O UL File# E107536, material D202G30 Electrical: Drawing: 1621 (pdf) |
|

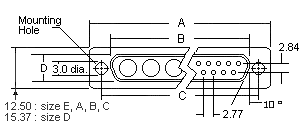

Mechanical Specification and

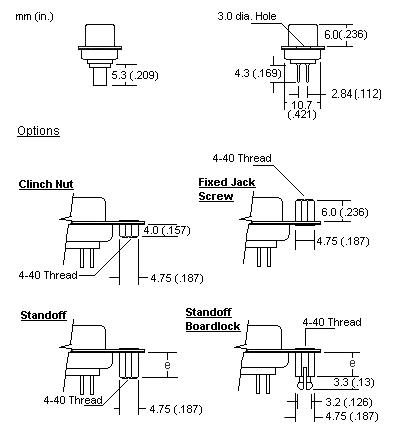

Mounting Option:
|
|
Ordering Part Numbers
| Effective
Apr. 15, 2001 part numbers for this series
have changed. The part numbers below are the current P/N.
Click Here to see a cross reference of the new P/N to the old P/N. For assistance E-Mail us at sales@hochien-connectors.com |
| Shell Size |
Contact Arrangements (Front view of Plug/ Rear view of Recept) |
Plug \ Recept |
Part Number | Dimensions mm | |||||
| 40 Amps | 20 Amps | 10 Amps | A | B | C | D | |||
| E |
2W2 |
Plug | 1640-22T | 1620-22T | 1610-22T | 30.81 | 16.92 | 24.88 | 8.36 |
| Recept | 1641-22T | 1621-22T | 1611-22T | 16.33 | 7.87 | ||||
5W1 |
Plug | 1640-51T | 1620-51T | 1610-51T | 16.92 | 8.36 | |||
| Recept | 1641-51T | 1621-51T | 1611-51T | 16.33 | 7.87 | ||||
| A |
3W3 |
Plug | 1640-33T | 1620-33T | 1610-33T | 39.14 | 25.25 | 33.32 | 8.36 |
| Recept | 1641-33T | 1621-33T | 1611-33T | 24.66 | 7.87 | ||||
3V3 |
Plug |
1640-23T |
1620-23T |
1610-23T |
25.25 |
8.36 |
|||
| Recept |
1641-23T |
1621-23T |
1611-23T |
24.66 |
7.87 |
||||
7W2 |
Plug | 1640-72T | 1620-72T | 1610-72T | 25.25 | 8.36 | |||
| Recept | 1641-72T | 1621-72T | 1611-72T | 24.66 | 7.87 | ||||
11W1 |
Plug | 1640-11T | 1620-11T | 1610-11T | 25.25 | 8.36 | |||
| Recept | 1641-11T | 1621-11T | 1611-11T | 24.66 | 7.87 | ||||
| B |
5W5 |
Plug | 1640-55T | 1620-55T | 1610-55T | 53.04 | 38.96 | 47.04 | 8.36 |
| Recept | 1641-55T | 1621-55T | 1611-55T | 38.38 | 7.87 | ||||
13W3 |
Plug | 1640-13T | 1620-13T | 1610-13T | 38.96 | 8.36 | |||
| Recept | 1641-13T | 1621-13T | 1611-13T | 38.38 | 7.87 | ||||
17W2 |
Plug | 1640-12T | 1620-12T | 1610-12T | 38.96 | 8.36 | |||
| Recept | 1641-12T | 1621-12T | 1611-12T | 38.38 | 7.87 | ||||
21W1 |
Plug | 1640-21T | 1620-21T | 1610-21T | 38.96 | 8.36 | |||
| Recept | 1641-21T | 1621-21T | 1611-21T | 38.38 | 7.87 | ||||
| C |
8W8 |
Plug | 1640-88T | 1620-88T | 1610-88T | 69.32 | 55.42 |
63.50 | 8.36 |
| Recept | 1641-88T | 1621-88T | 1611-88T | 54.84 |
7.87 |
||||

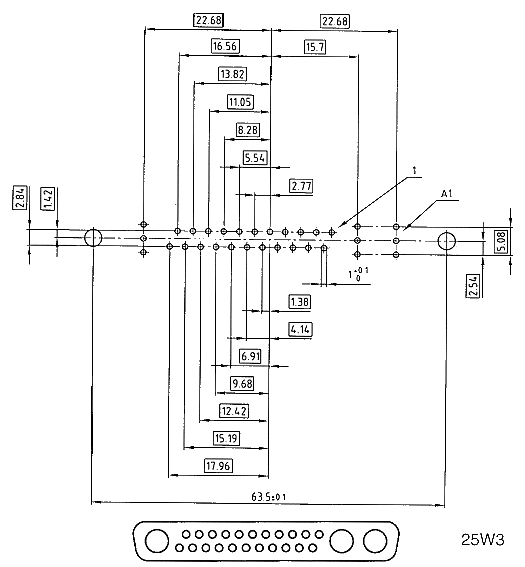

25W3 |
Plug |
- |
- |
- |
55.42 |
8.36 | |||
| Recept |
- |
- |
- |
54.84 |
7.87 |
||||

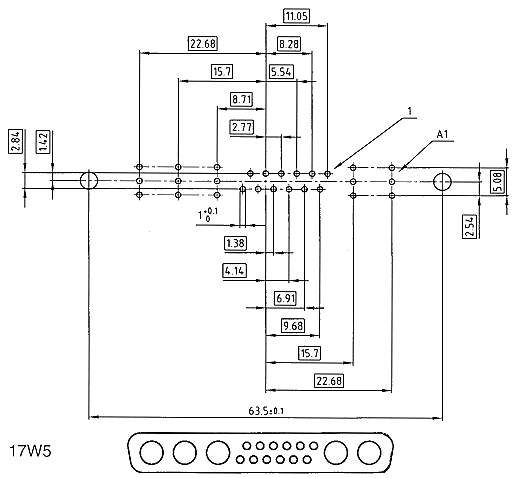

17W5 |
Plug |
1640-15T |
1620-15T |
1610-15T |
55.42 |
8.36 |
|||
| Recept |
1641-15T |
1621-15T |
1611-15T |
54.84 |
7.87 |
||||

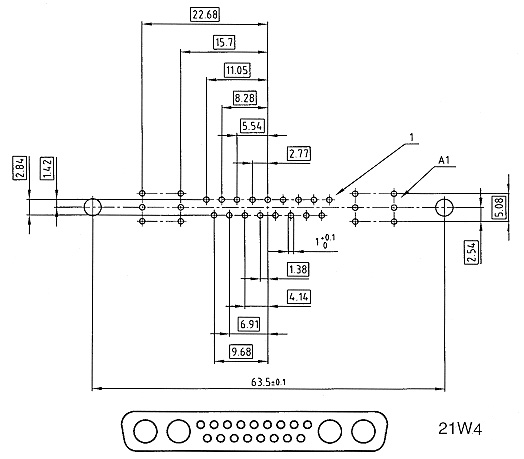

21W4 |
Plug | 1640-24T | 1620-24T | 1610-24T | 55.42 | 8.36 | |||
| Recept | 1641-24T | 1621-24T | 1611-24T | 54.84 | 7.87 | ||||

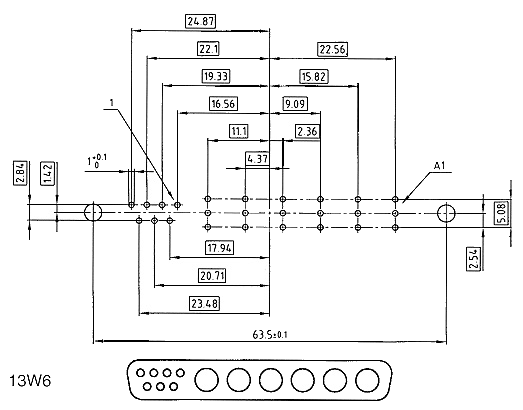

13W6 |
Plug |
1640-16T |
1620-16T |
1610-16T |
55.42 |
8.36 |
|||
| Recept |
1641-16T |
1621-16T |
1611-16T |
54.84 |
7.87 |
||||

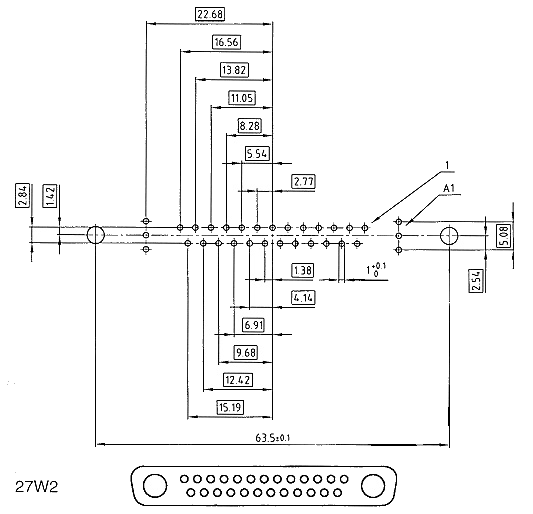

27W2 |
Plug |
1640-27T |
1620-27T |
1610-27T |
55.42 |
8.36 |
|||
| Recept |
1641-27T |
1621-27T |
1611-27T |
54.84 |
7.87 |
||||
| D |
36W4 |
Plug | 1640-34T | 1620-34T | 1610-34T | 66.93 | 52.81 | 61.11 | 11.07 |
| Recept | 1641-34T | 1621-34T | 1611-34T | 52.43 | 10.74 | ||||
| * Part Numbers includes Housing, and Preloaded Signal Contacts
and High Power Contacts (Preloaded). * Housing with Preloaded Signal Contacts and High Power Contacts may be ordered seperately. Contact Ho Chien to Order. * To order High Power Contacts only sperately, see table below for Part Numbers. * Economic stamp pin type on signal contacts available. * Zinc shell, Insulation color and gold on contact options are available. Contact Ho Chien for more info. |
|||||||||

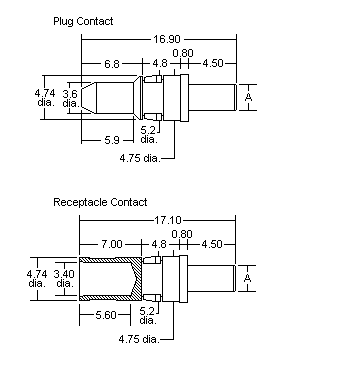

High Power Contacts - Vertical PCB Type |
|
||||||||||||||||||||
|
|
|
|
