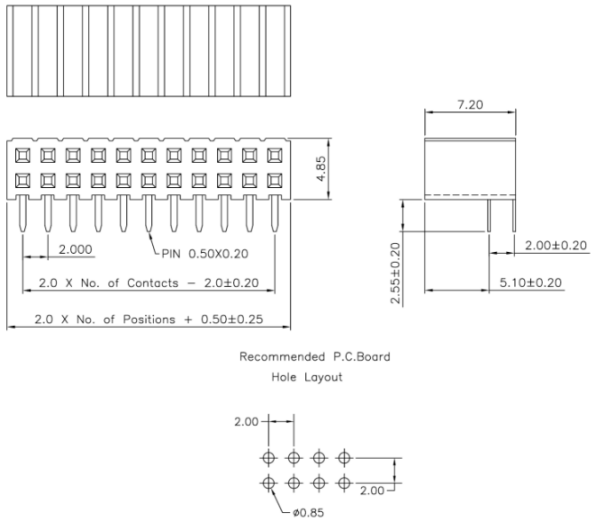

2252R Series
0.078" x 0.078" (2.0x2.0mm) Dual Row PCB Socket Strip
[ Right Angle Side Entry ]

Material:

Contact: Phosphor Bronze
Contact Plating: Gold or Tin over 0.000100" Nickel Underplating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black
Mating Connectors: 2522 , 2523 Series

Electrical:

Current Rating: 2 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -25^oC to +105^oC

Ordering Part Number
