Ho Chien Enterprise Co., Ltd.

2252-SMT Series
0.078" x 0.078" Dual Row PCB Socket Strip
[ Surface Mount ]

Material:

Contact: Phosphor Bronze
Contact Plating: Gold or Tin over 0.000100" Nickel Underplating
PCB Tail Plating: 0.000150" Tin over 0.000100" Nickel Underplating
Insulator:?/font>PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black
Mating Connectors: 2522 , 2523 Series

Electrical:

Current Rating: 1.5 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -40^oC to +105^oC

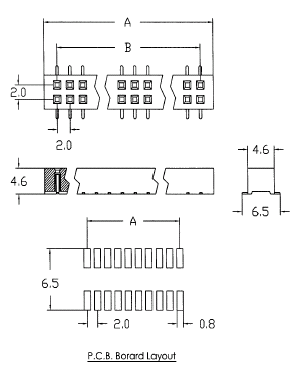

Drawing: 2252 (pdf)

Ordering Part Number

2252M -	2 X	[][]	[]	- []
Series Number	Number of Rows	Number of Positions Per Row	Contact Plating
Surface Mount		[ 1 thru 40 pins ]	G: 5u" Gold ??????? F: 10u" Gold E: 15u" Gold D: 30u" Gold	Blank: Tray Package T: Tape Reel with Pad ?br> ( for auto insertion application (Min. Qty request)
