2500 Series
0.100" Center Terminal Housing; Polarized; Rails

Material:

Contact: Brass
Contact Plating: Tin Plated
Insulator: Nylon 66; rated UL94V-O
Mating Connector: 2506, 2507 Series
AWG:  22 ~ 28 AWG

Electrical:

Current Rating: 1 Amp Max.
Contact Resistance: 30 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -25^oC to +85^oC

Ordering Part Number

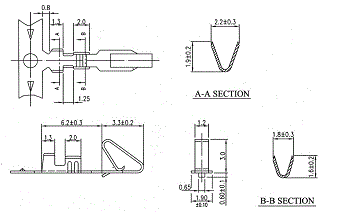

Terminal Contacts Part Number: 2500-10T (Tin plating)
                                                     2500-10G (Gold plating)

Quantity per reel: 10000 pcs
