2532 Series
0.100" Center Shrouded Header

Material:
Contact: Phosphor Bronze
Contact Plating: Gold over 0.000100" Nickel Underplating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O,
                N6: Nylon 6T for high temperature SMT application
Insulator Color: Black or Gray
Mating Connector: 2540 Series

Electrical:
Current Rating: 3 Amp Max.
Contact Resistance: 30 Milliohms. Max.
Insulation Resistance: 5000 Megohms Min. DC 500V
Dielectric Strength: 1000V AC
Operation Temperature: -55oC to +105oC

Note: Single Row use 2544 pin header w/o Shrouded.

Drawing : 2532 (pdf)


Ordering Part Number

2532 -

[][]

[]

- []

[][]

[]

Series Number

Number of
Positions

Contact Plating
Gold

Housing Color

Housing Material



2532:
Through Hole

6, 8, 10, 12, 14, 16,
20,  22,  24, 26,  28,
30,  32, 34,  36,  38,
40, 42,  44,  46,  48
50,  52,  54,  56, 58,
60,  62,  64

Blank:  5u"
F: 10u"
E: 15u"
D: 30u"

Blank: Black Color
G: Gray Color

Blank: Std PBT

Blank: Tray Package

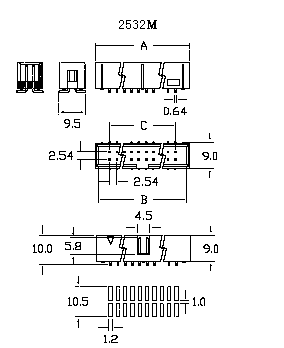

2532M:
Surface Mount

6, 8, 10, 12, 14, 16,
20,  24, 26,  30, 34,
40, 44, 50

Blank:  Nylon 6T

Blank: Tray Package
T: Tube
CT: CAP Pad w Tube
CR: CAP Pad w Tape Reel. Available 10, 14, 16, 20, 26, 34, 40

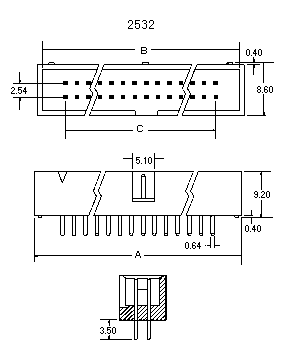

Dimensions (mm)

Pos.

A

B

C

10

20.34

18.10

10.16

12

22.88

20.58

12.70

14

25.48

23.18

15.24

16

27.90

25.72

17.78

20

33.05

30.80

22.88

24

38.08

35.88

27.94

26

40.68

38.42

30.48

30

45.70

43.50

35.56

34

50.80

48.58

40.64

40

58.46

56.20

48.26

50

71.10

68.90

60.96

60

83.80

81.60

73.66

64

89.10

86.68

78.74
