Ho Chien Enterprise Co., Ltd.

2533 Series
0.100" Center Shrouded Header
[ Right Angle ]

Material:

Contact: Phosphor Bronze
Contact Plating: Gold over 0.000100" Nickel Underplating
Insulator:?/font>PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
?????? ? Nylon Nylon 6T for high temperature 320C, Suffix N6
Insulator Color: Black or Gray
Mating Connector: 2540 Series

Electrical:

Current Rating: 3 Amp Max.
Contact Resistance: 30 Milliohms. Max.
Insulation Resistance: 5000 Megohms Min. DC 500V
Dielectric Strength: 1000V AC
Operation Temperature: -55^oC to +105^oC

Drawing : 2533 (pdf)

Ordering Part Number

2533 -	[][]	[]	-?/font>[][]	- [][]
Series Number	Number of Positions	Contact Plating	Color	Pin Length
	10, 12, 14, 16, 20, 24, 26, 30, 34, 40, 50, 60, 64	Blank: 0.000005" Gold F: 10u" Gold (40K oin moq) E: 15u" Gold (40K oin moq) D: 30u" Gold (40K oin moq)	Blank:?/font>PBT & 30% glass fiber plastic N6: Nylon Nylon 6T for high tem. 320C	Blank: 2.90mm ?/font> 1.5: 1.50mm

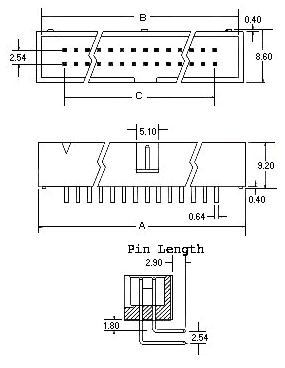

Dimensions (mm)
Pos.	A	B	C
10	20.34	18.10	10.16
12	22.88	20.58	12.70
14	25.48	23.18	15.24
16	27.90	25.72	17.78
20	33.05	30.80	22.88
24	38.08	35.88	27.94
26	40.68	38.42	30.48
30	45.70	43.50	35.56
34	50.80	48.58	40.64
40	58.46	56.20	48.26
50	71.10	68.90	60.96
60	83.80	81.60	73.66
64	89.10	86.68	78.74
