3001 Series
D-Sub Solder Cup Type

Material:
Shell: Steel w/ Tin Plated (optional Zinc plating)
Contact: Phosphor Bronze
Contact Plating: 0.000127mm [0.000005"] Gold
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Color: White (optional Black and Blue)

Alternative: Machine Contact Type [ click here ]

Electrical:
Contact Current Rating: 5 Amp
Contact resistance: 10 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 1000V AC
Dielectric Withstanding: 1000V AC min. rms
Operation Temperature: -55oC to +105oC

Data Sheet: 3001 (pdf)

Note: Mounting Option (pdf)
Ordering Part Number
Shell
Size		 No. of
Position		 Plug (M) /
Recept (F)		 Tin Shell Zinc Shell
Mounting Hole Clinch Nut 4mm on Rear shell Fixed Jackscrew 6mm on Front Shell Mounting Hole Clinch Nut 4mm on Rear shell Fixed Jackscrew 6mm on Front Shell
E 9 Plug (M) 3001-01T 3001-01T-2N 3001-01T-2NA 3001-01Z 3001-01Z-2N 3001-01Z-2NA
Recept (F) 3001-11T 3001-11T-2N 3001-11T-2NA 3001-11Z 3001-11Z-2N 3001-11Z-2NA
A 15 Plug (M) 3001-02T 3001-02T-2N 3001-02T-2NA 3001-02Z 3001-02Z-2N 3001-02Z-2NA
Recept (F) 3001-12T 3001-12T-2N 3001-12T-2NA 3001-12Z 3001-12Z-2N 3001-12Z-2NA
B 25 Plug (M) 3001-05T 3001-05T-2N 3001-05T-2NA 3001-05Z 3001-05Z-2N 3001-05Z-2NA
Recept (F) 3001-15T 3001-15T-2N 3001-15T-2NA 3001-15Z 3001-15Z-2N 3001-15Z-2NA
C 37 Plug (M) 3001-06T 3001-06T-2N 3001-06T-2NA 3001-06Z 3001-06Z-2N 3001-06Z-2NA
Recept (F) 3001-16T 3001-16T-2N 3001-16T-2NA 3001-16Z 3001-16Z-2N 3001-16Z-2NA
D 50 Plug (M) 3001-07T 3001-07T-2N 3001-07T-2NA 3001-07Z 3001-07Z-2N 3001-07Z-2NA
Recept (F) 3001-17T 3001-17T-2N 3001-17T-2NA 3001-17Z 3001-17Z-2N 3001-17Z-2NA
* Also Available (Contact Ho Chien for more information):
- White or Black insulation.
- Contact gold plating upgrade. **
- Custom length of contact leads. **
- All connectors can be customly altered to fit your needs. **
** minimum orders and/or tooling charges may apply
Contact Finish Plating: w Suffix
Blank: 5u" Gold flash
 GT: 5u"Selected  Gold flash
G10: 10u" Gold
G15: 15u" Gold
G30: 30u" Gold

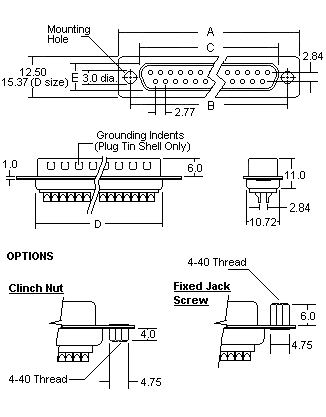

Mechanical Specification and Mounting Option:
Dimension (mm)
Shell
Size		 No.
Pos.		 Plug (M) /
Recept (F)		 A B C D E
E 9 Plug (M) 30.81 24.88 16.92 19.28 8.36
Recept (F) 16.33 7.90
A 15 Plug (M) 39.14 33.32 25.25 27.51 8.36
Recept (F) 24.66 7.90
B 25 Plug (M) 53.04 47.04 38.96 41.30 8.36
Recept (F) 38.38 7.90
C 37 Plug (M) 69.32 63.50 55.42 57.71 8.36
Recept (F) 54.84 7.90
D 50 Plug (M) 66.93 61.11 52.81 55.32 11.07
Recept (F) 52.43 10.74
