3007 Series -
D-Sub IDC Type High Profile; for flat ribbon cable

Materials:

Shell: Steel w/ Tin Plated (optional Zinc plating)
Contact: Phosphor Bronze
Contact Plating: 0.000127mm [0.000005"] Gold
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Color: Black

Alternative: 3027, 3037, 3047 Series.
Recommended Cable: 1.27mm ctr. Ribbon Cable 26 or 28 AWG; FC Series

Electrical:

Contact Current Rating: 1.4 Amp (26AWG); 1 Amp (28 AWG)
Contact resistance: 10 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 1000V AC
Dielectric Withstanding: 1000V AC min. rms
Operation Temperature: -55^oC to +105^oC

Ordering Part Number

Shell
Size

No. of
Position

Plug (M) /
Recept (F)

Tin Shell

Zinc Shell

Mounting Hole

Clinch Nut

Fixed Jackscrew

Mounting Hole

Clinch Nut

Fixed Jackscrew

E

9

Plug (M)

3007-01

3007-01-2N

3007-01-2NA

3007-01Z

3007-01Z-2N

3007-01Z-2NA

Recept (F)

3007-11

3007-11-2N

3007-11-2NA

3007-11Z

3007-11Z-2N

3007-11Z-2NA

A

15

Plug (M)

3007-02

3007-02-2N

3007-02-2NA

3007-02Z

3007-02Z-2N

3007-02Z-2NA

Recept (F)

3007-12

3007-12-2N

3007-12-2NA

3007-12Z

3007-12Z-2N

3007-12Z-2NA

B

25

Plug (M)

3007-05

3007-05-2N

3007-05-2NA

3007-05Z

3007-05Z-2N

3007-05Z-2NA

Recept (F)

3007-15

3007-15-2N

3007-15-2NA

3007-15Z

3007-15Z-2N

3007-15Z-2NA

* Also Available (Contact Ho Chien for more information):
- Contact gold plating upgrade. **
- Custom length of contact leads. **
- All connectors can be customly altered to fit your needs. **
** minimum orders and/or tooling charges may apply

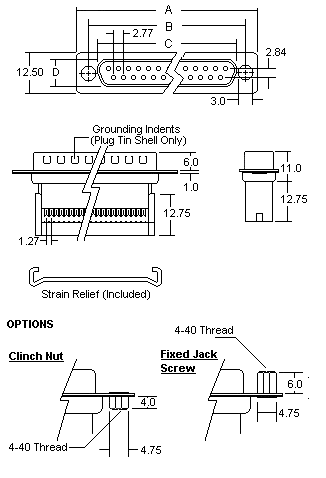

Mechanical Specification and Mounting Option
