3027 Series - Metal Wire Strain Relief or Plastic Strain Relief
D-Sub IDC Type; for flat ribbon cable

Materials:

Shell: Steel w/ Tin Plated (optional Zinc plating)
Contact: Phosphor Bronze
Contact Plating: 0.000127mm [0.000005"] Gold
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Color: Blue (Standard color)
????? Black Color available with suffix - BK
Alternative: 3047, 3037, 3007 Series.
Recommended Cable: 1.27mm ctr. Ribbon Cable 26 or 28 AWG; FC Series

Electrical:

Contact Current Rating: 1.4 Amp (26AWG); 1 Amp (28 AWG)
Contact resistance: 10 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 1000V AC
Dielectric Withstanding: 1000V AC min. rms
Operation Temperature: -55oC to +105oC

RoHs
Ordering Part Number
3027 - []
 [] [] [][]
 - [][]
Series Number Type
 No of Positions Contact Plating OptionsStrain Relief
 Color

0: Plug (M)
1: Recept (F)
 1: ?/font>9 Pos.
2: 15 Pos.
5: 25 Pos.
6: 36 Pos.		 Blank: Select Gold
F: 10u" Gold
E: 15u" Gold
D: 30u" Gold		 A: Mounting Hole 3mm
B: 4-40 Thread Insert
Blank: Metal Wire Strain Relief
P: Plastic Strain Relief
 Blank: Blue
BK: Black
Shell
Size		 No. of
Position		 Plug (M) /
Recept (F)		 Tin Shell Zinc Shell
 Mounting Hole? 4-40 Thread Insert  Mounting Hole? 4-40 Thread Insert
E 9 Plug (M) 3027-01A 3027-01B 3027-01ZA 3027-01ZB
Recept (F) 3027-11A 3027-11B 3027-11ZA 3027-11ZB
A 15 Plug (M) 3027-02A 3027-02B 3027-02ZA 3027-02ZB
Recept (F) 3027-12A 3027-12B 3027-12ZA 3027-12ZB
B 25 Plug (M) 3027-05A 3027-05B 3027-05ZA 3027-05ZB
Recept (F) 3027-15A 3027-15B 3027-15ZA 3027-15ZB
C 37 Plug (M) 3027-06A 3027-06B 3027-06ZA 3027-06ZB
Recept (F) 3027-16A 3027-16B 3027-16ZA 3027-16ZB
* Black Color available with suffix - BK
- Contact gold plating upgrade. **
- Custom length of contact leads. **
- All connectors can be customly altered to fit your needs. **
** minimum orders and/or tooling charges may apply

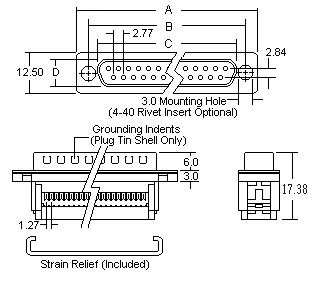

Mechanical Specification and Mounting Option
Dimension (mm)
Shell
Size		 No.
Pos.		 Plug (M) /
Recept (F)		 A B C D
E 9 Plug (M) 30.81 24.88 16.92 8.36
Recept (F) 16.33 7.90
A 15 Plug (M) 39.14 33.32 25.25 8.36
Recept (F) 24.66 7.90
B 25 Plug (M) 53.04 47.04 38.96 8.36
Recept (F) 38.38 7.90
C 37 Plug (M) 69.32 63.50 55.42 8.36
Recept (F) 54.84 7.90
