3047 Series
D-Sub IDC Type; for flat ribbon cable

Materials:
Shell: Steel w/ Tin Plated (optional Zinc plating)
Contact: Phosphor Bronze
Contact Plating: 0.000127mm [0.000005"] Gold
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Color: Black

Alternative: 3027, 3037, 3007 Series.
Recommended Cable: 1.27mm ctr. Ribbon Cable 26 or 28 AWG; FC Series

Electrical:
Contact Current Rating: 1.4 Amp (26AWG); 1 Amp (28 AWG)
Contact resistance: 10 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 1000V AC
Dielectric Withstanding: 1000V AC min. rms
Operation Temperature: -55oC to +105oC
RoHs
Ordering Part Number
3047 -

3047N -

 []
 [] [] [] []
Series Number Type
 No of Positions Contact Plating Options Strain Relief
Black Color Only
 0: Plug (M)
1: Recept (F)
 1:  9 Pos.
2: 15 Pos.
5: 25 Pos.
6: 36 Pos.		 Blank: Select Gold
F: 10u" Gold
E: 15u" Gold
D: 30u" Gold		 Blank: Mounting Hole 3mm
2N: Clinch Nut 2.5mm rear
2NA:  Fix jackscrew front		 Blank: Metal Wire Strain Relief
P: Plastic Strain Relief
Shell
Size		 No. of
Position		 Plug (M) /
Recept (F)		 Tin Shell Zinc Shell
Mounting Hole Clinch Nut Fixed Jackscrew Mounting Hole Clinch Nut Fixed Jackscrew
E 9 Plug (M) 3047-01 3047-01-2N 3047-01-2NA 3047-01Z 3047-01Z-2N 3047-01Z-2NA
Recept (F) 3047-11 3047-11-2N 3047-11-2NA 3047-11Z 3047-11Z-2N 3047-11Z-2NA
A 15 Plug (M) 3047-02 3047-02-2N 3047-02-2NA 3047-02Z 3047-02Z-2N 3047-02Z-2NA
Recept (F) 3047-12 3047-12-2N 3047-12-2NA 3047-12Z 3047-12Z-2N 3047-12Z-2NA
B 25 Plug (M) 3047-05 3047-05-2N 3047-05-2NA 3047-05Z 3047-05Z-2N 3047-05Z-2NA
Recept (F) 3047-15 3047-15-2N 3047-15-2NA 3047-15Z 3047-15Z-2N 3047-15Z-2NA
C 37 Plug (M) 3047-06 3047-06-2N 3047-06-2NA 3047-06Z 3047-06Z-2N 3047-06Z-2NA
Recept (F) 3047-16 3047-16-2N 3047-16-2NA 3047-16Z 3047-16Z-2N 3047-16Z-2NA
* Also Available (Contact Ho Chien for more information):
- Contact gold plating upgrade. **
- Custom length of contact leads. **
- All connectors can be customly altered to fit your needs. **
** minimum orders and/or tooling charges may apply

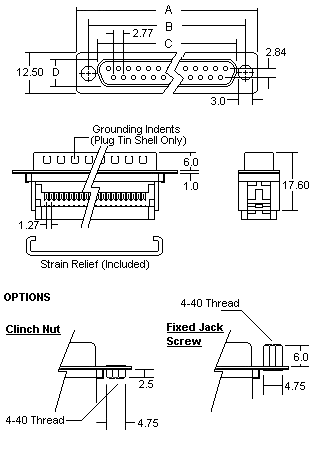

3047 Mechanical Specification and Mounting Option
Dimension (mm)
Shell
Size		 No.
Pos.		 Plug (M) /
Recept (F)		 A B C D
E 9 Plug (M) 30.81 24.88 16.92 8.36
Recept (F) 16.33 7.90
A 15 Plug (M) 39.14 33.32 25.25 8.36
Recept (F) 24.66 7.90
B 25 Plug (M) 53.04 47.04 38.96 8.36
Recept (F) 38.38 7.90
C 37 Plug (M) 69.32 63.50 55.42 8.36
Recept (F) 54.84 7.90

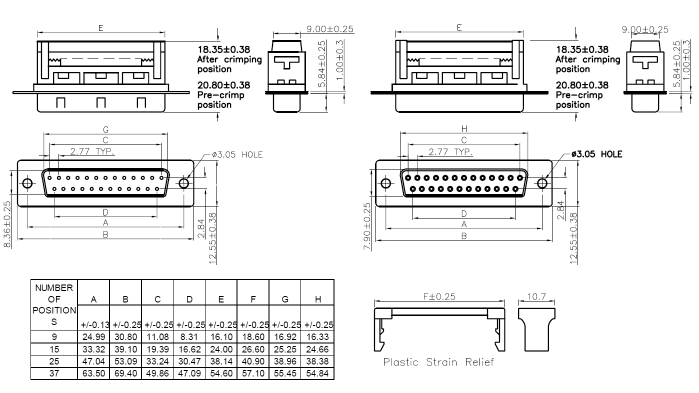

3047N (Low Profile) Mechanical Specification and Mounting Option
