3009 Series  UL# E218269  RoHS compliant
Dual Port Series D-Sub PCB Right Angle

Material:

Shell: Steel w/ Tin Plated (optional Zinc plating)
Contact: Phosphor Bronze
Contact Plating: 0.000127mm [0.000005"] Gold
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-0
                  (Wave Solder Profile @ 260 Degree C)
                  N6: PA6T Arlen Grains - High Temperature 260C
                  (Convection Oven Solder Profile @ 260 Degree C)
Color: Black

Electrical:

Contact Current Rating: 5 Amp
Contact resistance: 10 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 1000V AC
Dielectric Withstanding: 1000V AC min. rms
Operation Temperature: -55oC to +105oC

Others Configuration :  (19.05mm [ 0.750" ] Spacing only)

9F / 25F: 3009-13
9M / 25F: 3009-14
HD15F / HD15F: 3009-15
25F / HD15F: 3009-16
9M / HD15F: 3009-17 (19.05mm [ 0.750"], 15.88mm [ 0.625"] Spacing available)
HD15F / 9M: 3009-18
15F / 25F: 3009-19
25F / 9M x 2: 3009-20
25M / 9M: 3009-21
25M / 9F: 3009-22
25F / 9M : 3009-22R
25F / 9F: 3009-23
HD26F / HD26M: 3009-24
HD26F / HD26F: 3009-25
25F / HD15F (Right) DB9M (Left) : 3009-26
HD15F / DVI29F : 3009-27
25M / 37M : 3009-28
25M / 37F : 3009-29
25F / 9F x 2 : 3009-30
9F / HD15F : 3009-31(19.05mm [ 0.750"], 15.88mm [ 0.625"] Spacing available)
For PA6T Arlen Grains - High Temperature 260C : Suffix N6 by N6, Example 3009-04AZ-N6

Ordering Part Number
19.05mm [ 0.750" ] Spacing between Connectors ( Dim. E )
Shell
Size		 No.
Pos.		 Plug (M) / Recept (F) Mounting Options
Top Bottom Rivet Insert /
No Boardlock		 Rivet Insert /
w Boardlock		 Rivet Insert /
No Boardlock
w Jackscrew		 Rivet Insert /
w Boardlock
w Jackscrew
E 9 Plug (M) Plug (M) 3009-04A 3009-04AZ 3009-04AA 3009-04AAZ
Plug (M) Recept (F) 3009-05A 3009-05AZ 3009-05AA 3009-05AAZ
Recept (F) Plug (M) 3009-05RA 3009-05RAZ 3009-05RAA 3009-05RAAZ
Recept (F) Recept (F) 3009-06A 3009-06AZ 3009-06AA 3009-06AAZ
A 15 Plug (M) Plug (M) 3009-07A 3009-07AZ 3009-07AA 3009-07AAZ
Plug (M) Recept (F) 3009-08A 3009-08AZ 3009-08AA 3009-08AAZ
Recept (F) Plug (M) 3009-08RA 3009-08RAZ 3009-08RAA 3009-08RAAZ
Recept (F) Recept (F) 3009-09A 3009-09AZ 3009-09AA 3009-09AAZ
B 25 Plug (M) Plug (M) 3009-01A 3009-01AZ 3009-01AA 3009-01AAZ
Plug (M) Recept (F) 3009-02A 3009-02AZ 3009-02AA 3009-02AAZ
Recept (F) Plug (M) 3009-02RA 3009-02RAZ 3009-02RAA 3009-02RAAZ
Recept (F) Recept (F) 3009-03A 3009-03AZ 3009-03AA 3009-03AAZ



C


37
 Plug (M)
 Plug (M)
 3009-10A 3009-10A 3009-10AA 3009-10AAZ
Plug (M)
 Recept (F)
 3009-11A 3009-11A 3009-11AA 3009-11AAZ
Recept (F)
 Plug (M)
 3009-11RA 3009-11RA 3009-11RA 3009-11RAAZ
Recept (F)
 Recept (F)
 3009-12A 3009-12A 3009-12AA 3009-12AAZ

Ordering Part Number
22.86mm [ 0.900" ] Spacing between Connectors ( Dim. E )
Shell
Size		 No.
Pos.		 Plug (M) / Recept (F) Mounting Options
Top Bottom Rivet Insert /
No Boardlock		 Rivet Insert /
w Boardlock		 Rivet Insert /
No Boardlock
w Jackscrew		 Rivet Insert /
w Boardlock
w Jackscrew
E 9 Plug (M) Plug (M) 3009-04B 3009-04BZ 3009-04BA 3009-04BAZ
Plug (M) Recept (F) 3009-05B 3009-05BZ 3009-05BA 3009-05BAZ
Recept (F) Plug (M) 3009-05RB 3009-05RBZ 3009-05RBA 3009-05RBAZ
Recept (F) Recept (F) 3009-06B 3009-06BZ 3009-06BA 3009-06BAZ
A 15 Plug (M) Plug (M) 3009-07B 3009-07BZ 3009-07BA 3009-07BAZ
Plug (M) Recept (F) 3009-08B 3009-08BZ 3009-08BA 3009-08BAZ
Recept (F) Plug (M) 3009-08RB 3009-08RBZ 3009-08RBA 3009-08RBAZ
Recept (F) Recept (F) 3009-09B 3009-09BZ 3009-09BA 3009-09BAZ
B 25 Plug (M) Plug (M) 3009-01B 3009-01BZ 3009-01BA 3009-01BAZ
Plug (M) Recept (F) 3009-02B 3009-02BZ 3009-02BA 3009-02BAZ
Recept (F) Plug (M) 3009-02RB 3009-02RBZ 3009-02RBA 3009-02RBAZ
Recept (F) Recept (F) 3009-03B 3009-03BZ 3009-03BA 3009-03BAZ


C

37
 Plug (M)
 Plug (M)
 3009-10B 3009-10BZ 3009-10BA 3009-10BAZ
Plug (M)
 Recept (F)
 3009-11B 3009-11BZ 3009-11BA 3009-11BAZ
Recept (F)
 Plug (M)
 3009-11RB 3009-11RBZ 3009-11RBA 3009-11RBAZ
Recept (F)
 Recept (F)
 3009-12B 3009-12BZ 3009-12BA 3009-12BAZ

Ordering Part Number
15.88mm [ 0.625" ] Spacing between Connectors ( Dim. E )
Shell
Size		 No.
Pos.		 Plug (M) / Recept (F) Mounting Options
Top Bottom Rivet Insert /
No Boardlock		 Rivet Insert /
w Boardlock		 Rivet Insert /
No Boardlock
w Jackscrew		 Rivet Insert /
w Boardlock
w Jackscrew
E 9 Plug (M) Plug (M) 3009-04C 3009-04CZ 3009-04CA 3009-04CAZ
Plug (M) Recept (F) 3009-05C 3009-05CZ 3009-05CA 3009-05CAZ
Recept (F) Plug (M) 3009-05RC 3009-05RCZ 3009-05RCA 3009-05RCAZ
Recept (F) Recept (F) 3009-06C 3009-06CZ 3009-06CA 3009-06CAZ
A 15 Plug (M) Plug (M) 3009-07C 3009-07CZ 3009-07CA 3009-07CAZ
Plug (M) Recept (F) 3009-08C 3009-08CZ 3009-08CA 3009-08CAZ
Recept (F) Plug (M) 3009-08RC 3009-08RCZ 3009-08RCA 3009-08RCAZ
Recept (F) Recept (F) 3009-09C 3009-09CZ 3009-09CA 3009-09CAZ
B 25 Plug (M) Plug (M) 3009-01C 3009-01CZ 3009-01CA 3009-01CAZ
Plug (M) Recept (F) 3009-02C 3009-02CZ 3009-02CA 3009-02CAZ
Recept (F) Plug (M) 3009-02RC 3009-02RCZ 3009-02RCA 3009-02RCAZ
Recept (F) Recept (F) 3009-03C 3009-03CZ 3009-03CA 3009-03CAZ



C


37
 Plug (M)
 Plug (M)
 3009-10C 3009-10CZ 3009-10CA 3009-10CAZ
Plug (M)
 Recept (F)
 3009-11C 3009-11CZ 3009-11CA 3009-11CAZ
Recept (F)
 Plug (M)
 3009-11RC 3009-11RCZ 3009-11RCA 3009-11RCAZ
Recept (F)
 Recept (F)
 3009-12C 3009-12CZ 3009-12CA 3009-12CAZ

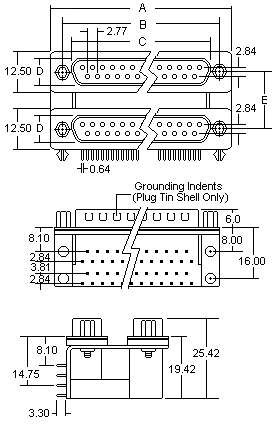

Mechanical Specification

Dimension (mm)
Shell
Size		 No.
Pos.		 Plug (M) /
Recept (F)		 A B C D E
E 9 Plug (M) 30.81 24.88 16.92 8.36 Optional

19.05

22.86

15.88
Recept (F) 16.33 7.90
A 15 Plug (M) 39.14 33.32 25.25 8.36
Recept (F) 24.66 7.90
B 25 Plug (M) 53.04 47.04 38.96 8.36
Recept (F) 38.38 7.90

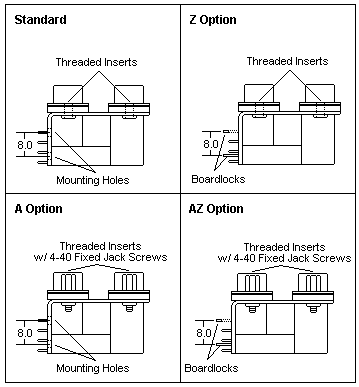

Mounting Option
