3119 Series Snap Type
D-Sub Plastic and Metalized Plastic Hoods
V-Shape W/ Short Flange

Material:
Plastic Shield: Grey Thermoplastic; rated UL94 HB ABS
Metalized Plastic Shield: Thermoplastic; plated Zinc
4-40 Fillister Head Screws and Hex Nuts: Steel; nickel plated
4-40 Mounting screws (Thumbscrews): Steel: nickel plated

Ref:  PN# 3100 (pdf)
Ref:  PN# 3100-J (pdf)

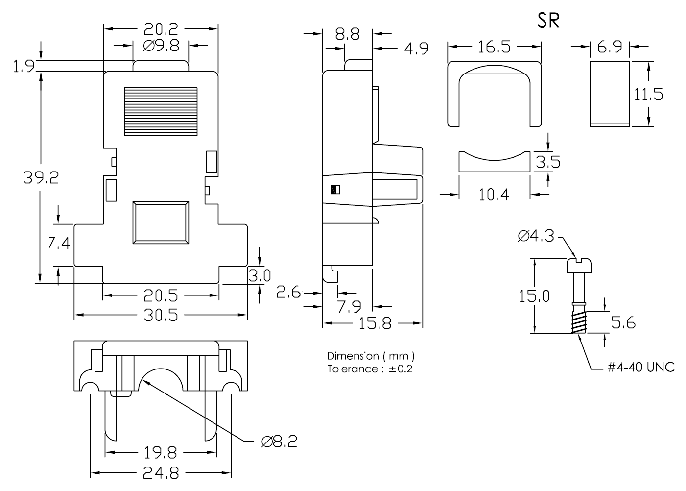

Drawing : 3100 series

RoHs
Ordering Part Number
3119 - [] [] []
Series Number Type of Screws Shell Size Shell Plating
  0: 4-40 Mounting screws
1: 4-40 Thumbscrews (no slut)
2: 4-40 Thumbscrews (w slut)
Use S018, S018-1 S018-2-01
 if need slot thumbscrew		 1: 9 Pos.
2: 15 Pos.
5: 25 Pos.
6: 37 Pos.		 Blank: Grey Color
BK: Black Color
C: Metalized Thermoplastic

3119-01
