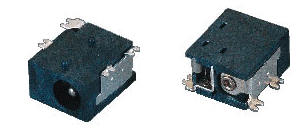

AJ232A-X-SMT

Material:

Contact: Phosphor Bronze
Contact Plating: 0.000150" Tin over 0.000100" Nickel Underplating
Insulator:?/font>Nylon 66; rated UL94V-O
Mating Connector: 2506, 2507 Series

Electrical:

Current Rating: 1 Amp Max.
Contact Resistance: 30 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -25oC to +85oC

AJ232A-A-SMT ?
RoHs
Configuration

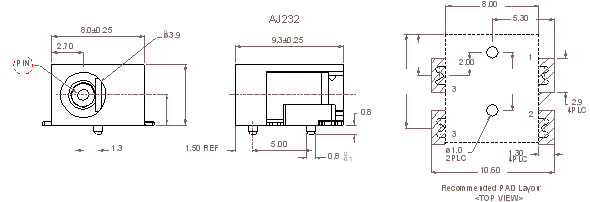

DRAWING
