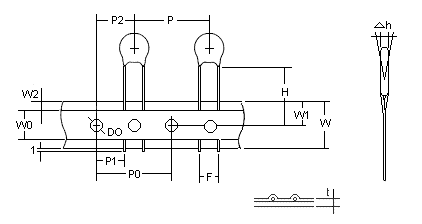

Taping Specification
| Sb |
Dimension (unit
= mm) |
| Parameter |
05D, 07D |
10D |
14D |
18D, 20D |
| 1 |
Length of clipped lead |
1.0 max. |
2.0 max. |
1.0 max. |
1.0 max. |
| H |
Height of component from tape center |
20.0  2.0 |
20.0 2.0 |
20.0 2.0 |
20.0 2.0 |
 h |
Component alignment |
0 2.0 |
0 2.0 |
0 4.0 |
0 4.0 |
| W |
Tape width |
18.0 1.0 |
18.0 1.0 |
18.0 1.0 |
18.0 1.0 |
| W0 |
Hold down tape width |
12.5 min. |
12.5 min. |
12.5 min. |
12.5 min. |
| W1 |
Hole position |
9.0 0.5 |
9.0 0.5 |
9.0 0.5 |
9.0 0.5 |
| W2 |
Hold down tape position |
3.0 max. |
3.0 max. |
3.0 max. |
3.0 max. |
| F |
Component lead spacing |
5.0 0.5 |
7.5 0.8 |
7.5 0.5 |
10.0 0.5 |
| P |
Ptich of component |
12.7 1.0 |
15.0 2.0 |
25.4 1.0 |
25.4 1.0 |
| P0 |
Sprocket hole pitch |
12.7 0.3 |
15.0 0.3 |
25.4 1.0 |
25.4 1.0 |
| P1 |
Lead length from hole center to lead |
3.85 0.7 |
3.75 0.7 |
8.95 0.7 |
7.7 0.7 |
| P2 |
Length from hole center to disk center |
6.35 1.3 |
7.5 1.3 |
12.7 1.3 |
12.7 1.3 |
| DO |
Feed hole diameter |
4.0 0.2 |
4.0 0.2 |
4.0 0.2 |
4.0 0.2 |
| t |
Total thickness of tape |
0.6 0.3 |
0.6 0.3 |
0.6 0.3 |
0.6 0.3 |
|
