2600 Series (Old 2552HE Series)
0.100" x 0.100" Dual Row PCB Socket Strip [ Side Entry ]

2x2 mm Pitch: 2204-2X_ _  Available

Material:

Contact: Phosphor Bronze
Contact Plating: Gold or Tin over 0.000100" Nickel Underplating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black
Mating Connectors: 2542 , 2543 Series

Electrical:

Current Rating: 3 Amp Max.
Contact Resistance: 30 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -55^oC to +105^oC

Drawing :  2600-1, 2600-2, 2600-2X_G-B
                  2600-1-SMT, 2600-2-SMT

Ordering Part Number

2600-2A Series (Standard)

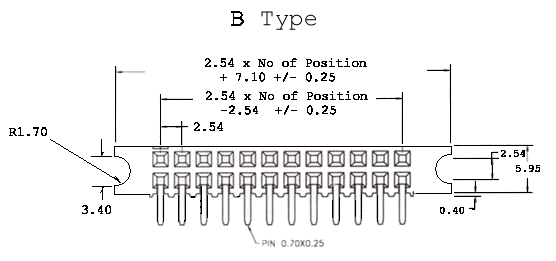

2600-2B Series
