USB / IEEE-1394 Connector

USB A Type Socket Stack Type.(Image)

Material:
Shell: C2680 R-H t=0.30mm
Contact: Phosphor Bronze t=0.25mm
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Insulation: L.C.P UL94V-O

RoHS compliance

Electrical:
Contact Current Rating: 1 Amp
Contact resistance: 10 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 1000V AC
Dielectric Withstanding: 500V AC min. rms
Total Mating Force: 3.57Kgf Max.
Total Unmating Force: 0.71Kgf Max.
Operation Temperature: -40oC to +85oC

Mini USB B Shielding Receptacle R/A

MUSB-
 []
 []
 []
 []
 []
 []
Series Number
 No. of contact Type
 Contact Plating
 Shell Plating
 Insulator Color
 Type

4: 4 position
5: 5 position
8: 6 position
 1: Male
2: Female
 1:  5u" Selected Gold
2: 15u" Selected Gold
3: 30u" Selected Gold
4: 50u" Selected Gold
 1:  Nickel
2:  Tin
3:  Gold
 1:  Black
2:  White
3:  Black High Temp.
 1:  SMT B 5 PIN
2:  Solder Type (4-5 w/o kink)
3:  Solder Type (4-5 kink)
4:  SMT A/B Type
5:  SMT Type
6:  SMT B 4P
7:  Mini USB 4P/F SMT

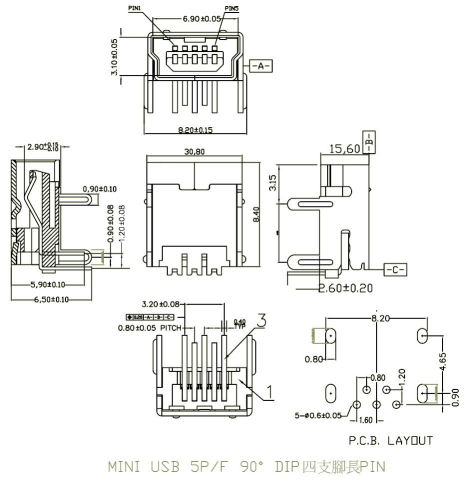

8:  Mini USB 5P/F R/A Long pin

8:  Mini USB 5P/F R/A Long pin


USB Solder Male Type for Over Mold Application
USB[][][]-
 []
 []
 [] []
Series Number
 Version
 Type Shell Contact Plating Gold
275
279
280-01
281 (Include HOOD)
284-02 (Black color Only)
 A: USB A
B: USB B
 M: Male
F: Female
 S: Short Shell
L: Long Shell
 Blank:  5u"
E: 15u"
D: 30u"
Mini USB 5 Pin (F) AB Type SMT MUSB-AB5FA15G-M
USB A type R/A Side entry Shield
 HC-031-08
Mini USB 5 Pin (F) 180 Shield Straight Dip MUSB-B5FA15K-V AU61B005K0
IEEE 1394
IE-1394-6FS-GXX
 IE-1394-4 HC-033-01
 USBB4F0102W05
MUSB-5FB-SMT
 USB-002-03
 USB04AS2NSR
 USB04BS2NSR
